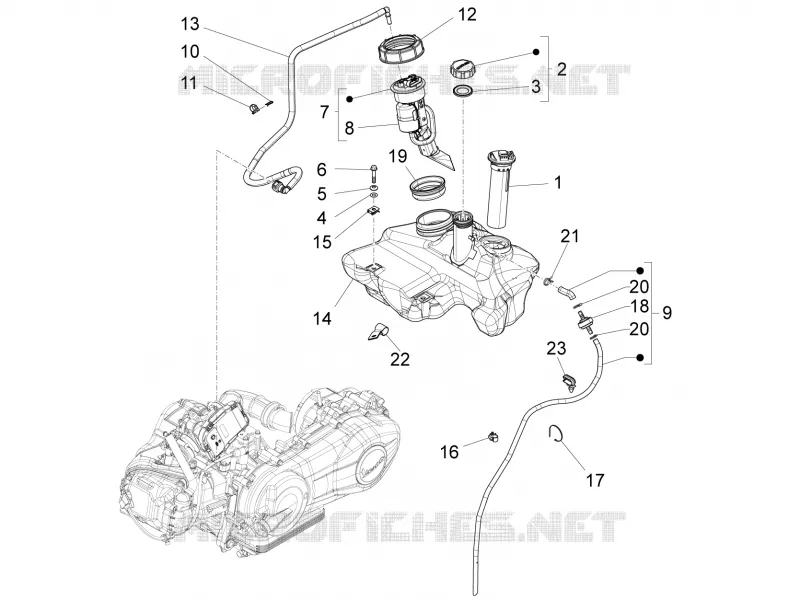

Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
1
Indicator fuel level
CM025713
$95,90 Unit Price incl. VAT
2
Plug
259832
$1,10 Unit Price incl. VAT
3
Tank cover gasket
656021
$8,66 Unit Price incl. VAT
4
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
5
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
6
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
7
Complete fuel pump assembly
641136
$391,93 Unit Price incl. VAT
8
Fuel pump filter
639357
$78,73 Unit Price incl. VAT
9
Complete breather pipe
6727995
$48,86 Unit Price incl. VAT
10
Elastic spring
672491
$1,01 Unit Price incl. VAT
11
Pipes/cables retainer spring
CM006913
$5,38 Unit Price incl. VAT
12
Ring nut
576546
$4,71 Unit Price incl. VAT
13
Complete fuel pipe
674906
$90,72 Unit Price incl. VAT
14
Fuel tank
672399
Not Available
15
Spring plate M6
254485
$0,34 Unit Price incl. VAT
16
Spring
CM013201
$0,40 Unit Price incl. VAT
17
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
18
Safety valve
576748
$28,44 Unit Price incl. VAT
19
Gasket
656003
$15,89 Unit Price incl. VAT
20
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
21
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
22
Hose clamp
675126
$5,97 Unit Price incl. VAT
23
Hose clamp
217280
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
