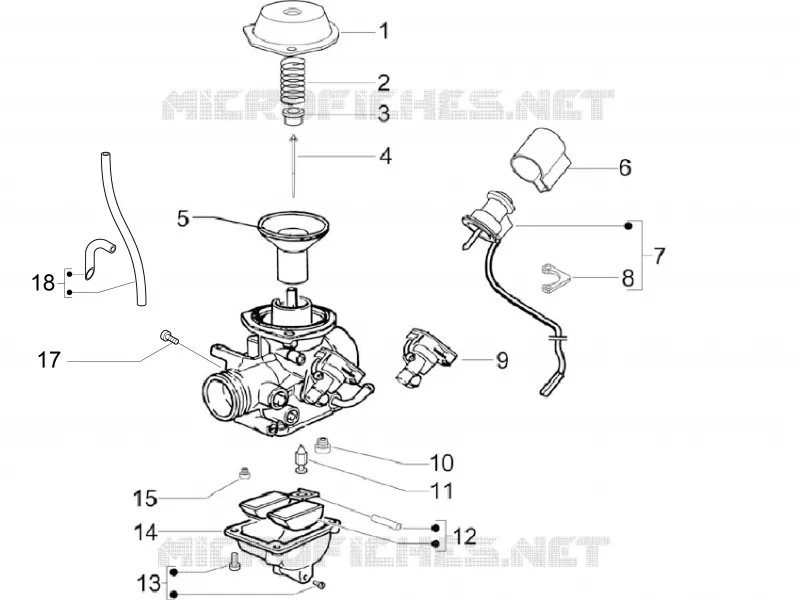

Carburetor's components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
1
Gas valve cover
842514
$20,60 Unit Price incl. VAT
2
Gas valve spring
CM140903
$14,18 Unit Price incl. VAT
3
Tapered pin cap
842517
Not Available
3
Cup
828822
$1,35 Unit Price incl. VAT
4
Conical pin NJHA
CM140210
$9,50 Unit Price incl. VAT
5
Diaphragm
CM140302
$130,56 Unit Price incl. VAT
6
Cap
828844
$16,84 Unit Price incl. VAT
7
Complete automatic starter
CM142905
Not Available
7
Complete automatic starter
CM142913
$215,74 Unit Price incl. VAT
8
Plate
828843
$3,03 Unit Price incl. VAT
9
Starter device
842530
$19,58 Unit Price incl. VAT
10
Main jet 82
CM129914
$16,59 Unit Price incl. VAT
11
Petrol needle
828831
Not Available
11
Fuel closing needle
CM147102
$16,84 Unit Price incl. VAT
12
Float kit
842522
$24,62 Unit Price incl. VAT
13
Float chamber kit
842523
$10,95 Unit Price incl. VAT
14
Complete reservoir
CM156709
$87,60 Unit Price incl. VAT
15
Idle jet
CM140105
$11,77 Unit Price incl. VAT
17
Adj.min.eng.speed screw
CM149404
$5,12 Unit Price incl. VAT
18
Pipes kit
842521
$7,31 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
