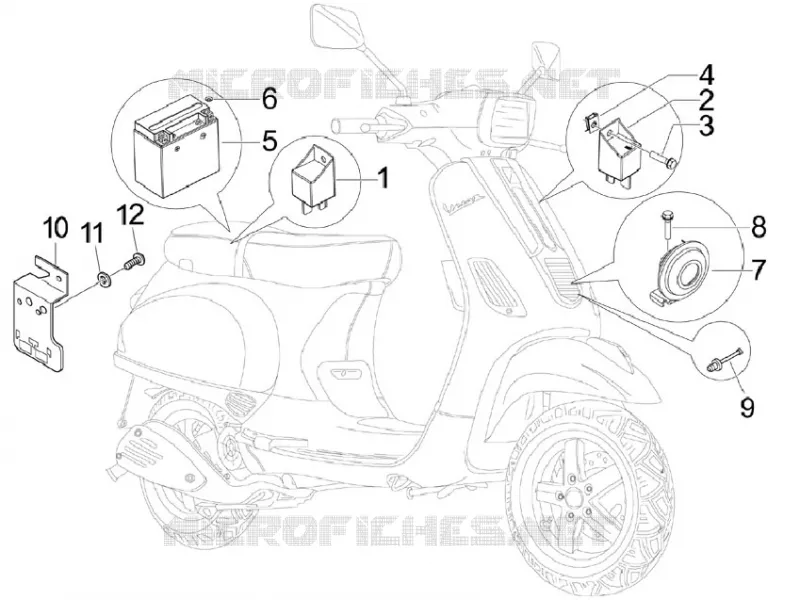

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
1
Rem. control switch 12V-80A
584521
Not Available
1
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
2
Rem. control switch 12V-30A
581139
Not Available
3
Self-tap screw
576189
$0,05 Unit Price incl. VAT
3
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
4
Spring plate
CM017409
$0,08 Unit Price incl. VAT
5
Battery (Yuasa) 12V-10Ah
583158
$278,17 Unit Price incl. VAT
6
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
7
Horn
CM076808
Not Available
7
Horn
58230R
$7,41 Unit Price incl. VAT
8
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
9
Ambient temperature sensor
581142
Not Available
10
Bracket
639340
$12,45 Unit Price incl. VAT
11
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
11
Screw M5x16
015715
$2,25 Unit Price incl. VAT
12
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
