by

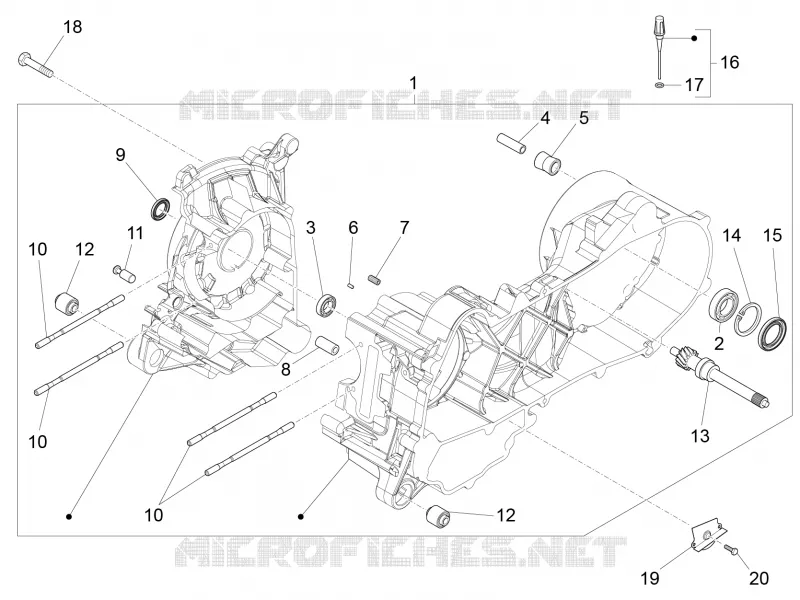

Crankcase
1
2
3
4
5
6
7
8
9
10
10
10
11
12
12
13
14
15
16
17
18
19
20
1
Crank-case
8429215
$627,09 Unit Price incl. VAT
2
Bearing
435363
$6,44 Unit Price incl. VAT
3
Bearing
82671R
$12,19 Unit Price incl. VAT
4
Spacer
266625
$3,70 Unit Price incl. VAT
5
Shock absorber connection silent block
267823
$4,92 Unit Price incl. VAT
6
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
7
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
8
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
9
Gasket ring 17x28x07
969028
$5,99 Unit Price incl. VAT
10
Stud bolt
969012
$3,17 Unit Price incl. VAT
11
Springs fixing pin
483785
$5,45 Unit Price incl. VAT
12
Silent-block
486081
$6,73 Unit Price incl. VAT
13
Driven pulley shaft Z=13
8282335
$101,37 Unit Price incl. VAT
14
Snap ring
480953
$3,70 Unit Price incl. VAT
15
Gasket ring
480066
$5,99 Unit Price incl. VAT
16
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
17
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT
18
Screw w/ flange
478895
$0,50 Unit Price incl. VAT
19
Oil bulhead
969625
$1,43 Unit Price incl. VAT
20
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
