by

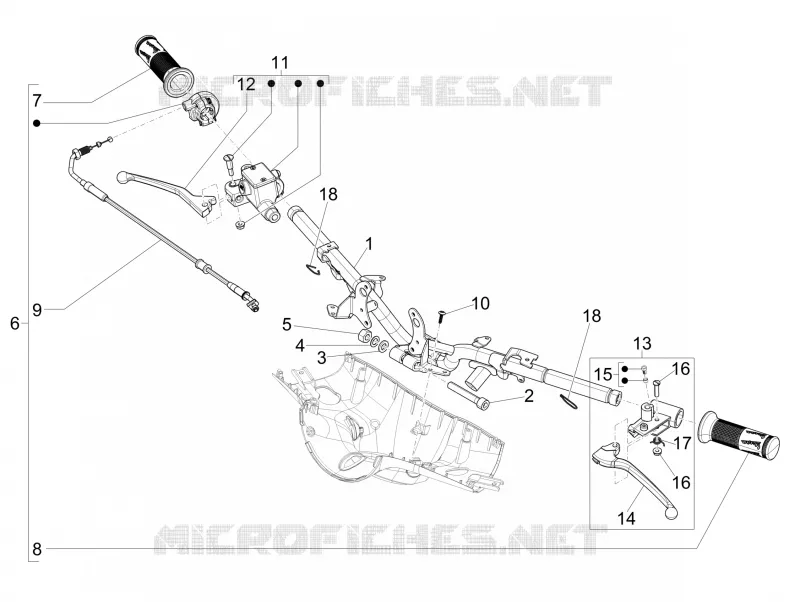

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
18
18
18
18
1
Handlebar with U.P.
1B002544R
$133,27 Unit Price incl. VAT
1
Handlebar with U.P.
673648
$133,27 Unit Price incl. VAT
2
Hex socket screw
668874
$2,95 Unit Price incl. VAT
3
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
4
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Throttle control sleeve assembly
CM258205
Not Available
7
Grip, r.h.
666845
$8,51 Unit Price incl. VAT
8
Grip, l.h.
666965
$8,51 Unit Price incl. VAT
9
Gas lever transmission
1C000649
Not Available
10
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
11
Front brakes pump assembly (Heng Tong)
CM074901
$125,55 Unit Price incl. VAT
12
Brake lever
497042
$18,36 Unit Price incl. VAT
13
Sleeve with rear brake lever
CM063806
$35,10 Unit Price incl. VAT
13
Sleeve with rear brake lever
CM063807
$35,10 Unit Price incl. VAT
14
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
15
Screw with bushing
123394
$3,70 Unit Price incl. VAT
16
Screw with nut
265249
$3,70 Unit Price incl. VAT
17
Spring
267948
$4,89 Unit Price incl. VAT
18
Spring
657046
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
