1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2016
4
Trim
Primavera 4T 3V iGet E4 ABS
5
Parts Catalog
Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Rear luggage rack
by
Meter combination - Cruscotto
Front headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
16
17
17
18
18
1
Headlamp, assy
642661
$93,14 Unit Price incl. VAT
2
Lamp H4 12V-60/55W
292723
$10,39 Unit Price incl. VAT
3
Headlight frame
642662
$21,26 Unit Price incl. VAT
4
Torx convex big end screw M5x16
B0167965
$0,16 Unit Price incl. VAT
5
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
6
Self-tap screw 3,5x13
018536
$0,08 Unit Price incl. VAT
7
Spring plate
CM017403
$0,50 Unit Price incl. VAT
8
RH daylight running light
680254
$78,25 Unit Price incl. VAT
9
LH position light
680253
$78,25 Unit Price incl. VAT
10
Cap
192598
$0,42 Unit Price incl. VAT
11
Self tapping screw 2,9x9,5
015727
$1,26 Unit Price incl. VAT
12
Blinker r
1D000243
$40,69 Unit Price incl. VAT
13
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
14
Blinker l
1D000242
$40,69 Unit Price incl. VAT
15
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
16
Plain washer 10,4x18x2
016626
$0,08 Unit Price incl. VAT
17
Washer
012535
$0,08 Unit Price incl. VAT
18
Nut
021210
$0,16 Unit Price incl. VAT

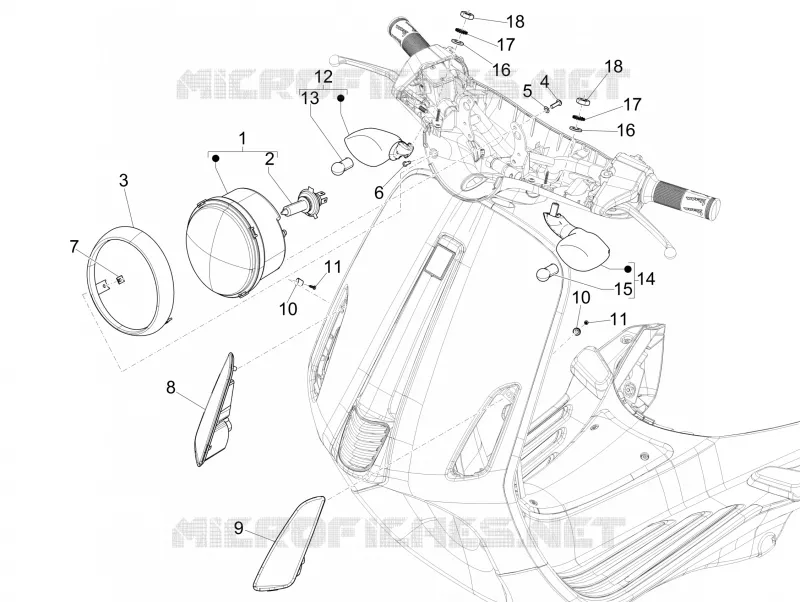

Find the detailed Front headlamps - Turn signal lamps GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
