Engine displacement
150
2
Model
PRIMAVERA
3
Year
2016
4
Trim
Primavera 4T 3V iGet E4 ABS
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Driving mirror/s
by
Rear wheel
Crankcase
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
1
2nd cat. complete crankcase
CM2716050B
Not Available
1
Complete crankcase 1st cat.
CM2716050A
Not Available
2
Nozzle
B018059
$0,59 Unit Price incl. VAT
3
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
4
Plug M12x1,5x11
B015433
$2,66 Unit Price incl. VAT
5
Calibrated nozzle
880706
$2,61 Unit Price incl. VAT
6
Locating dowel
B015957
$0,59 Unit Price incl. VAT
7
Radial bearing 20x50x14
83027R
$9,16 Unit Price incl. VAT
8
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
9
Stud bolt
1A001406
$3,61 Unit Price incl. VAT
10
Silent-block
486081
$6,73 Unit Price incl. VAT
11
Gasket
431065
$0,42 Unit Price incl. VAT
12
Circlip 25x26,9x1,2
B015959
$0,34 Unit Price incl. VAT
13
Sealing ring 22x35x7
1A005834
$11,18 Unit Price incl. VAT
14
Ring container lamination
876646
$0,76 Unit Price incl. VAT
15
screw M6x14
008375
$1,55 Unit Price incl. VAT
16
Oil pressure adjusting valve
B015432
$2,61 Unit Price incl. VAT
17
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT
18
Gasket
875111
$3,34 Unit Price incl. VAT
19
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
20
Oil bulhead
B014134
$4,12 Unit Price incl. VAT
21
Upper oil bulkhead
B014135
$2,02 Unit Price incl. VAT
22
Valve spring
B015431
$0,50 Unit Price incl. VAT
23
Filter door insert
B015430
$3,87 Unit Price incl. VAT

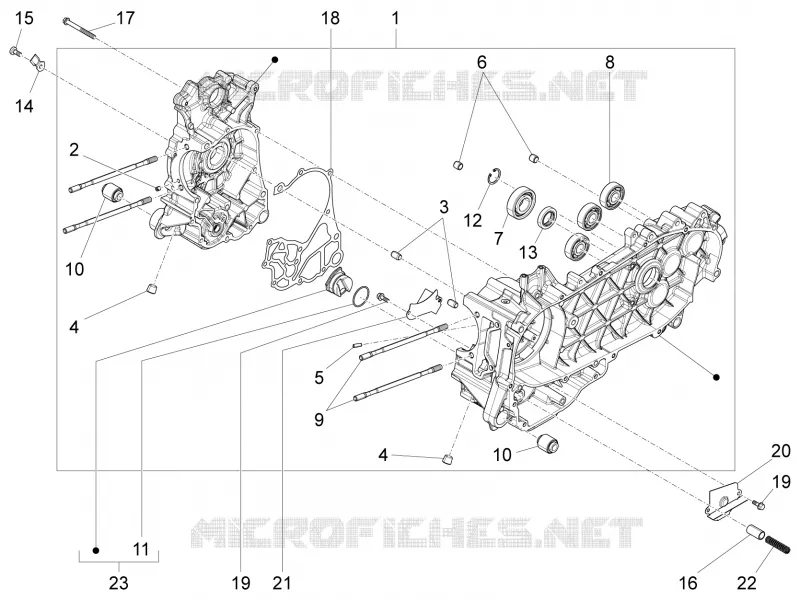

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
