Rear cover - Splash guard for LXV 4T Navy E3 from 2007

Rear cover - Splash guard

1

Splash guard

623420

$5,38 Unit Price incl. VAT

2

Self tapping screw

296141

$0,08 Unit Price incl. VAT

3

Flat washer 4,2x12x1

013763

$0,08 Unit Price incl. VAT

4

Battery cover

623020

Not Available

5

Bracket

290405

$4,82 Unit Price incl. VAT

6

Rivet

182302

$0,08 Unit Price incl. VAT

7

Spring plate

CM017410

$0,34 Unit Price incl. VAT

8

Self tapping screw M4,2x25

259372

$2,99 Unit Price incl. VAT

9

Plate

CM017408

$0,25 Unit Price incl. VAT

10

Screw m6x30

271891

$3,65 Unit Price incl. VAT

11

Spring plate M6

254485

$0,34 Unit Price incl. VAT

12

Spring plate

CM017410

$0,34 Unit Price incl. VAT

13

Rear protection

62212340DE

$141,26 Unit Price incl. VAT

14

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

15

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

16

Self tapping screw 3.5x16

294678

$3,65 Unit Price incl. VAT

17

Spring plate M6

254485

$0,34 Unit Price incl. VAT

18

Number plate holder

584884

$2,30 Unit Price incl. VAT

19

screw M4x14

018591

Not Available

20

Flat washer 4,2x12x1

013763

$0,08 Unit Price incl. VAT

21

Flat washer 4,2x7,6x0,9

016404

$0,42 Unit Price incl. VAT

22

Nut M4

020104

$1,26 Unit Price incl. VAT

23

Saddle rear cover

623336

$12,30 Unit Price incl. VAT

24

Plug screw

268596

$0,08 Unit Price incl. VAT

25

Battery holder tray

573128

$10,76 Unit Price incl. VAT

26

Complete battery cover

576017

$20,60 Unit Price incl. VAT

27

Self-tap screw

576189

$0,05 Unit Price incl. VAT

28

Pad

575329

Not Available

29

Number-plate extension

584877

$1,43 Unit Price incl. VAT

30

Plug screw

268596

$0,08 Unit Price incl. VAT

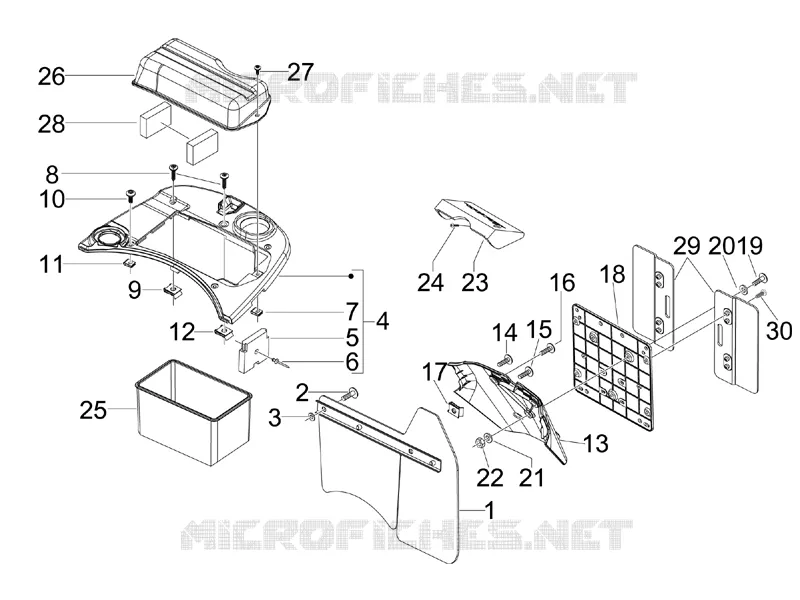

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
