Engine displacement
125
2
Model
LXV
3
Year
2007
4
Trim
LXV 4T Navy E3
5
Parts Catalog
Stater - Electric starter
6
Parts Diagram
Parts Catalog
Oil pump
by
Flywheel magneto
Stater - Electric starter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Starter motor
82611R
Not Available
2
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
3
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
4
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
5
Starter motor gear
82612R
$31,05 Unit Price incl. VAT
6
Pinion
483539
$7,62 Unit Price incl. VAT
7
Elastic spring
288673
$0,16 Unit Price incl. VAT
8
kick starter axle
830284
Not Available
9
Pad
830281
$5,53 Unit Price incl. VAT
10
Starter lever return spring
289495
$15,81 Unit Price incl. VAT
11
Bush
431205
$3,65 Unit Price incl. VAT
12
Washer 16,3x23,8
433987
$2,99 Unit Price incl. VAT
13
Circlip
006416
$0,08 Unit Price incl. VAT
14
Starter lever
827608
$35,10 Unit Price incl. VAT
15
Screw w/ flange M6x30
289731
Not Available
16
Pad
830260
$6,30 Unit Price incl. VAT

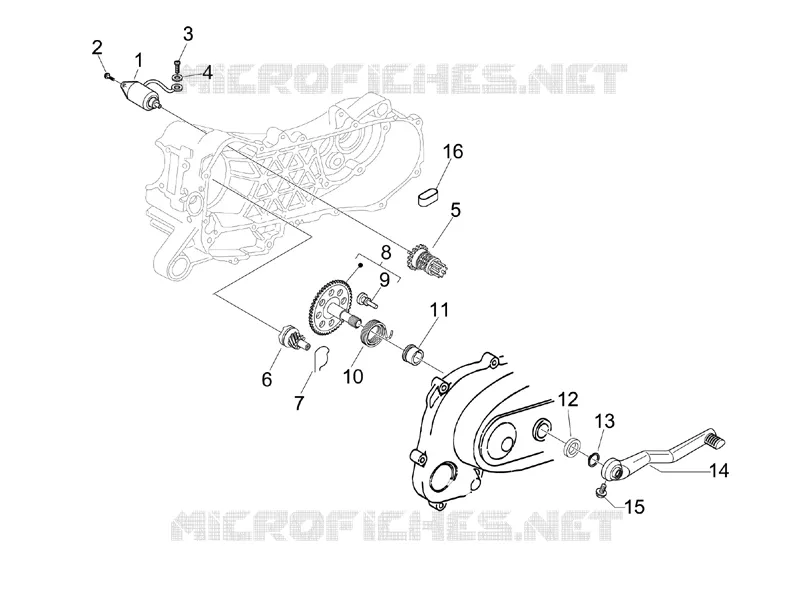

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
