1
Engine displacement
125
2
Model
LXV
3
Year
2016
4
Trim
LXV 4T 3V E3
5
Parts Catalog

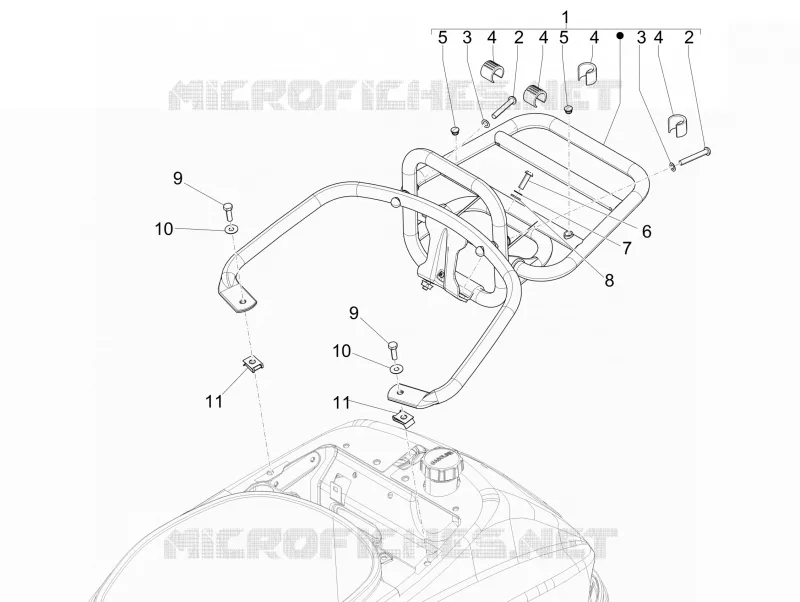

Rear luggage rack
6
Parts Diagram
Parts Catalog
Locks
by
Stater - Electric starter
Rear luggage rack
11
11
10
10
9
9
8
7
6
5
5
4
4
4
4
3
3
2
2
1
1
Complete luggage carrier
624616
$672,88 Unit Price incl. VAT
2
screw
622550
Not Available
3
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
4
Buffer for luggage carrier
622554
$5,38 Unit Price incl. VAT
5
Handle plug
623561
$7,23 Unit Price incl. VAT
6
screw torx
623920
$3,70 Unit Price incl. VAT
7
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
8
Washer 6.4x13x1.5
013777
$0,08 Unit Price incl. VAT
9
Hex screw
031090
$3,65 Unit Price incl. VAT
10
Washer
078307
$0,17 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
