Engine displacement
125
2
Model
LXV
3
Year
2016
4
Trim
LXV 4T 3V E3
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Main cable harness
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Driven pulley
19
18
17
16
15
14
13
12
11
11
10
9
8
7
7
6
5
4
3
2
1
1
Driven pulley complete with clutch
B016907
Not Available
1
Driven pulley complete with clutch
1A002526
$117,81 Unit Price incl. VAT
2
Complete fixed driven half-pulley
B019156
$60,36 Unit Price incl. VAT
2
Complete fixed driven half-pulley
B018252
$38,93 Unit Price incl. VAT
2
Complete fixed driven half-pulley
1A000803
Not Available
3
Ring
006624
$2,99 Unit Price incl. VAT
4
Roller cage 20x26x14
B018426
$16,40 Unit Price incl. VAT
5
Radial ball bearing
B018251
$10,69 Unit Price incl. VAT
6
Adjustable pulley, half
B018461
Not Available
6
Adjustable pulley, half
B019313
$49,94 Unit Price incl. VAT
7
Gasket ring
B016919
$3,19 Unit Price incl. VAT
8
Variator spring
B016923
$5,34 Unit Price incl. VAT
9
Clutch bush pin
B016921
$1,65 Unit Price incl. VAT
10
Pulley side cap
B016922
$3,68 Unit Price incl. VAT
11
O-Ring seal ring
B016920
$1,05 Unit Price incl. VAT
12
Complete centrifugal clutch assembly
B0191905
Not Available
12
Complete centrifugal clutch assembly
B016913
$60,04 Unit Price incl. VAT
13
Clutch disc
B016929
$3,39 Unit Price incl. VAT
14
Snap ring
B016930
$0,38 Unit Price incl. VAT
15
Ring nut
289955
$8,58 Unit Price incl. VAT
16
Clutch drum
B016908
Not Available
17
Spacer
B017653
$2,76 Unit Price incl. VAT
18
Flat washer 22x12,1x1
B016005
Not Available
19
Nut
B016992
$0,50 Unit Price incl. VAT

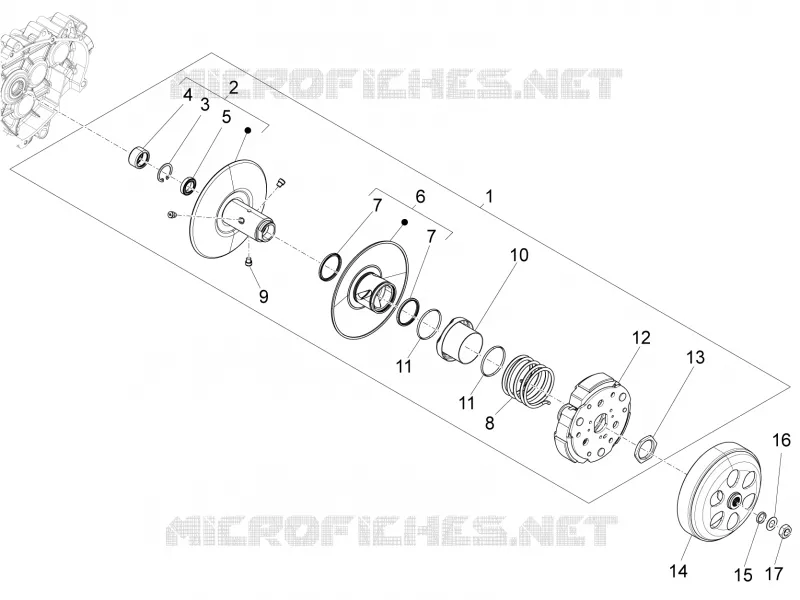

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
