1
Engine displacement
50
2
Model
LX
3
Year
2005
4
Trim
LX 2T
5
Parts Catalog
Handlebars coverages
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Driving pulley

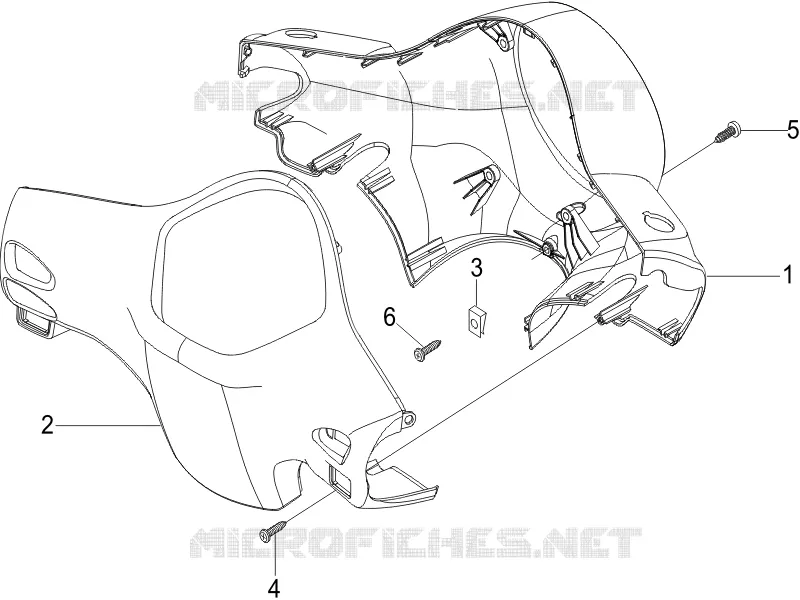

Handlebars coverages
1
2
3
4
5
6
1
Front handlebar cover
6529350018
Not Available
1
Front handlebar cover
652935
Not Available
1
FRONT HANDLEBARS COVER
65293500F3
Not Available
2
Handlebar rear cover
6529340018
Not Available
2
REAR HANDLEBARS COVER
65293400F3
Not Available
2
Handlebar rear cover
652934
Not Available
3
Spring plate
CM017409
$0,08 Unit Price incl. VAT
4
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
5
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
6
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
