1
Engine displacement
50
2
Model
LX
3
Year
2005
4
Trim
LX 2T
5
Parts Catalog

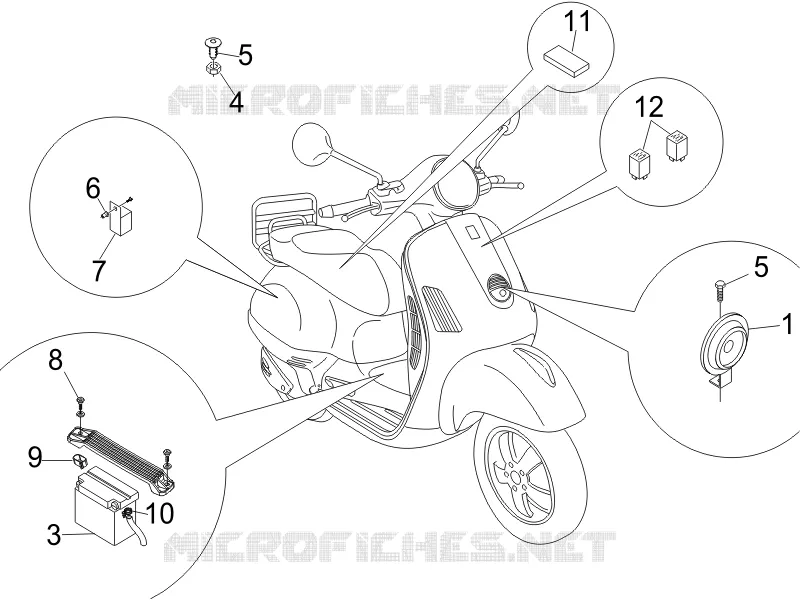

Remote control switches - Battery - Horn
6
Parts Diagram
Parts Catalog
Front shield
by
Engine, assembly
Remote control switches - Battery - Horn
1
3
4
5
5
6
7
8
9
10
11
12
1
Horn 12v cc
58094R
Not Available
2
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
3
Battery 12V-4Ah
234390
$79,65 Unit Price incl. VAT
3
Battery 12V-9Ah
584810
$180,83 Unit Price incl. VAT
4
Self locking nut M5
241937
Not Available
5
Screw w/ flange
436788
Not Available
6
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
7
Preheat. control device
639027
$64,80 Unit Price incl. VAT
8
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
9
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
10
Gasket
247489
Not Available
11
Complete bracket
298804
Not Available
12
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
