Engine displacement
150
2
Model
LX
3
Year
2009
4
Trim
LX 4T E3
5
Parts Catalog
Secondary air box
6

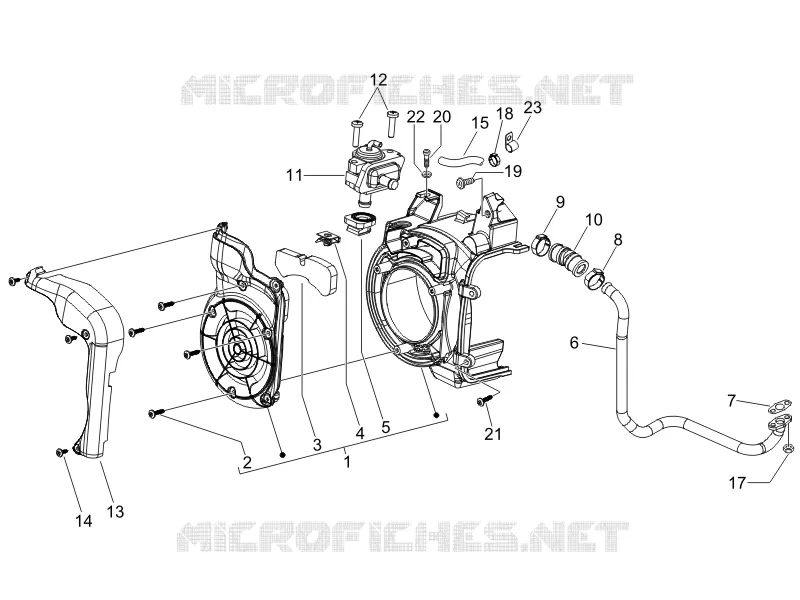

Parts Diagram
Parts Catalog
Air filter
by
Frame/bodywork
Secondary air box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
1
Complete air duct
834473
$22,07 Unit Price incl. VAT
2
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
3
Bush
843757
$1,44 Unit Price incl. VAT
3
Filtering element
832703
$2,12 Unit Price incl. VAT
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Gasket
833802
$3,05 Unit Price incl. VAT
6
Complete s.a.s. pipe
844116
$15,53 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Gasket
832943
$0,72 Unit Price incl. VAT
7
Complete s.a.s. pipe
844116
$15,53 Unit Price incl. VAT
8
Hose clamp
CM002903
$2,95 Unit Price incl. VAT
9
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
10
s.a.s. joint pipe
831259
$2,05 Unit Price incl. VAT
11
SAS valve
82731R
$89,76 Unit Price incl. VAT
12
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
13
SAS valve
82731R
$89,76 Unit Price incl. VAT
13
Flywheel cover
834476
$1,34 Unit Price incl. VAT
14
Self tapping screw
297498
$0,08 Unit Price incl. VAT
15
Fuel pipe
CM006102
Not Available
16
Hex socket screw M5x25
486972
$0,09 Unit Price incl. VAT
17
Special nut
873409
$3,65 Unit Price incl. VAT
17
Washer Ø5xØ12x1.1
828583
$0,08 Unit Price incl. VAT
18
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
19
screw
259577
$0,17 Unit Price incl. VAT
20
Hose clamp
847778
$0,33 Unit Price incl. VAT
20
Hex socket screw M5x25
486972
$0,09 Unit Price incl. VAT
21
Screw M5x22
828662
$0,25 Unit Price incl. VAT
21
Flywheel cover
834476
$1,34 Unit Price incl. VAT
22
Washer Ø5xØ12x1.1
828583
$0,08 Unit Price incl. VAT
23
Hose clamp
847778
$0,33 Unit Price incl. VAT
