Engine displacement
150
2
Model
LX
3
Year
2009
4
Trim
LX 4T E3
5
Parts Catalog
Wheel huosing - Mudguard
6

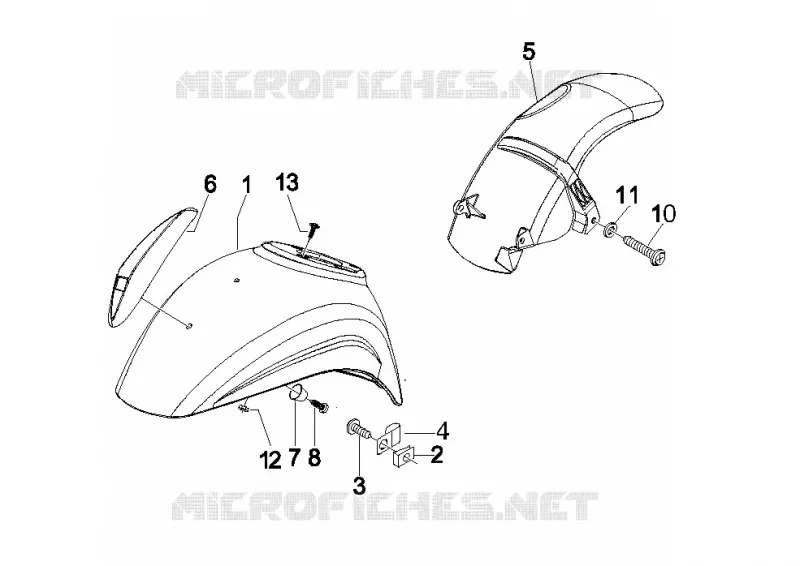

Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Helmet huosing - Undersaddle
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
10
11
12
13
1
Front mudguard
65074740AH
Not Available
1
Front mudguard
65038000BR
$258,52 Unit Price incl. VAT
1
Front mudguard
65038000XN2
Not Available
1
Front mudguard
65074700R7
Not Available
1
Front mudguard
65038000DE
Not Available
1
Front mudguard
65074700AI
Not Available
1
Front mudguard
65038000AI
Not Available
1
Front mudguard
65074700M4
Not Available
1
Front mudguard
65038000R7
Not Available
1
FRONT MUDGUARD
65038000EU
Not Available
1
Front mudguard
65074700XN2
$173,23 Unit Price incl. VAT
1
Front mudguard
650380
Not Available
1
Front mudguard
65074700AH
Not Available
1
Front mudguard
65074700BR
Not Available
1
Front mudguard
650747
Not Available
1
Front mudguard
65074700DE
Not Available
1
Front mudguard
65074740BR
Not Available
1
Front mudguard
65074700GP
Not Available
1
Front mudguard
65074700EU
Not Available
1
FRONT MUDGUARD
65038000GP
Not Available
2
Spring plate
CM017410
$0,34 Unit Price incl. VAT
2
Self tapping screw 2,9x9,5
015727
$1,26 Unit Price incl. VAT
3
Cap
192598
$0,42 Unit Price incl. VAT
3
screw
015900
$2,95 Unit Price incl. VAT
4
Hose clamp
562919
$3,65 Unit Price incl. VAT
5
Rear mudguard
575079
$66,71 Unit Price incl. VAT
6
Crest
650748
$8,16 Unit Price incl. VAT
7
Cap
192598
$0,42 Unit Price incl. VAT
8
Self tapping screw 2,9x9,5
015727
$1,26 Unit Price incl. VAT
10
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
11
Spring washer
709047
$0,08 Unit Price incl. VAT
12
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
13
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
