Engine displacement
150
2
Model
LX
3
Year
2009
4
Trim
LX 4T
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Main cable harness
by
Handlebars coverages
Fork/steering tube - Steering bearing unit
1
2
7
12
14
17
18
19
20
21
22
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
43
44
45
46
47
48
51
52
53
54
55
56
57
58
62
63
65
66
67
68
69
70
1
Steering tube ring nut
011109
Not Available
2
Upper thrust ring
650693
Not Available
7
Lower steering bearing
650075
Not Available
12
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
14
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
17
ROSETTA ELASTICA CON DENTATURA
012535
$0,08 Unit Price incl. VAT
18
DADO ESAGONALE BASSO
021210
$0,16 Unit Price incl. VAT
19
VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8
149104
$0,51 Unit Price incl. VAT
20
TAMPONE PER ATTACCO AMMORTIZZATORE
174085
$1,18 Unit Price incl. VAT
21
RONDELLA
174088
$0,84 Unit Price incl. VAT
22
TAMPONE PER ATTACCO AMMORTIZZATORE
174874
$2,36 Unit Price incl. VAT
24
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
25
Washer of the steering
003751
$3,65 Unit Price incl. VAT
26
ANELLO ELASTICO PER ALBERO
006422
$0,16 Unit Price incl. VAT
27
RONDELLA ONDULATA (5,3X10X0,5)
006975
$0,17 Unit Price incl. VAT
28
VITE T.E. M5X16
031058
$2,95 Unit Price incl. VAT
29
ANELLO O.R.
177408
$0,08 Unit Price incl. VAT
30
RONDELLA
177414
$0,75 Unit Price incl. VAT
31
RONDELLA
177445
$0,34 Unit Price incl. VAT
32
ANELLO DI TENUTA
177521
$0,66 Unit Price incl. VAT
33
TAMPONE TENUTA GUAIN
266841
$5,53 Unit Price incl. VAT
34
ROCCHETTO PRESA MOVIMENTO CONTAKM
267819
$7,69 Unit Price incl. VAT
35
Plate
269118
$4,82 Unit Price incl. VAT
36
MENSOLA ATTACCO AMMORTIZZ.CON P.I.
601556
$7,73 Unit Price incl. VAT
37
Maintenance
564053
Not Available
38
Not available
560286
Not Available
39
Drawn cap
177436
$9,18 Unit Price incl. VAT
40
ANELLO DI TENUTA
177494
$1,85 Unit Price incl. VAT
41
ANELLO ELASTICO
006635
$0,25 Unit Price incl. VAT
43
ASTUCCIO A RULLINI
177442
$4,04 Unit Price incl. VAT
44
ANELLO DI TENUTA
177443
$1,77 Unit Price incl. VAT
45
CUSCINETTO
177610
$8,41 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
47
DISCO FRENO
56395R
$21,87 Unit Price incl. VAT
48
Front wheel hub
560284
Not Available
51
Arm complete steering tube
648413
Not Available
52
GUARNIZIONE
006731
$0,34 Unit Price incl. VAT
53
ANELLO DI TENUTA
119219
$0,67 Unit Price incl. VAT
54
SPINOTTO
177451
$3,03 Unit Price incl. VAT
55
BOCCOLA A RULLINI
198513
$5,97 Unit Price incl. VAT
56
BRACCIO SOSPENSIONE SX CON P.I.
6483975
$109,60 Unit Price incl. VAT
57
Complete front shock absorber
646959
Not Available
58
Cover
092517
Not Available
62
Front suspension arm cover
561433
Not Available
63
COPERTURA SOSPENSIONE ANTERIORE
60041640P2
$90,69 Unit Price incl. VAT
65
COPIGLIA
012789
$0,16 Unit Price incl. VAT
66
DADO ESAGONALE NORMALE
021114
$0,51 Unit Price incl. VAT
67
CAPPELLOTTO
177609
$2,19 Unit Price incl. VAT
68
RONDELLA ELASTICA
016408
$0,08 Unit Price incl. VAT
69
DADO ESAGONALE M8 6H H=6,5
020108
$0,08 Unit Price incl. VAT
70
VITE A TESTA ESAGONALE GAMBO FILETTATO
031120
$0,42 Unit Price incl. VAT

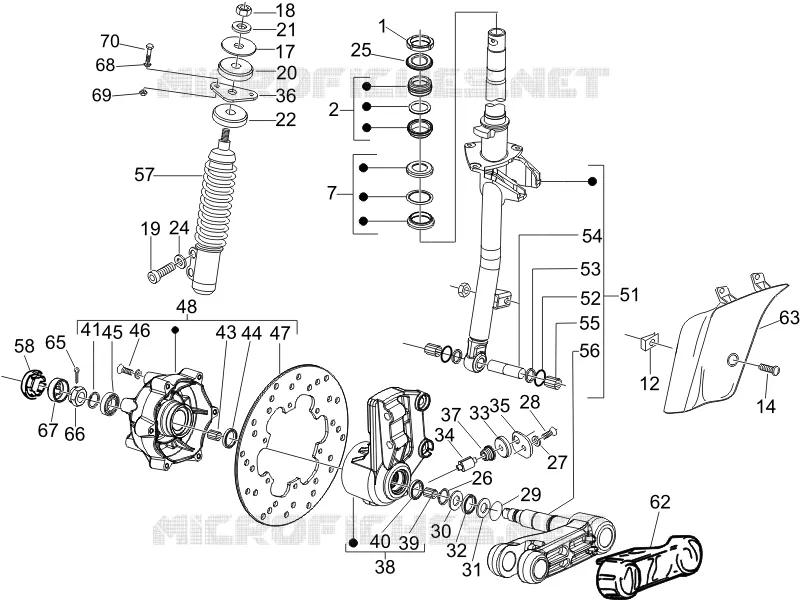

Find the detailed Fork/steering tube - Steering bearing unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
