Handlebars - Master cil. for GILERA PIAGGIO VESPA LX 4T from 2009

Handlebars - Master cil.

1

Handlebar with U.P.

6555105

Not Available

2

VITE A TESTA CILINDRICA ESAGONO INCASS.

655554

$3,70 Unit Price incl. VAT

3

PLAIN WASHER

267917

$0,50 Unit Price incl. VAT

4

RONDELLA ELASTICA PIANA DENT.INTERNA

012543

$0,08 Unit Price incl. VAT

5

ECROU

015330

$0,25 Unit Price incl. VAT

7

Throttle control sleeve assembly

CM079730

$311,85 Unit Price incl. VAT

10

POMPA COMANDO FRENO ANT.

CM074904

$125,55 Unit Price incl. VAT

11

Brake lever

646833

Not Available

12

Throttle opening transmission

648935

Not Available

13

Throttle closing transmission

648936

Not Available

14

MANOPOLA DESTRA

CM083804

$18,36 Unit Price incl. VAT

15

MANOPOLA SINISTRA

CM083803

$18,36 Unit Price incl. VAT

16

MANICOTTO CON LEVA FRENO POST.

CM063804

$51,30 Unit Price incl. VAT

17

VITE-BUSSOLA BLOCCAGGIO MANOPOLA

123394

$3,70 Unit Price incl. VAT

18

MOLLA SX

267948

$4,89 Unit Price incl. VAT

19

LEVA SX.

564683

$22,55 Unit Price incl. VAT

20

Screw and nut

121780

Not Available

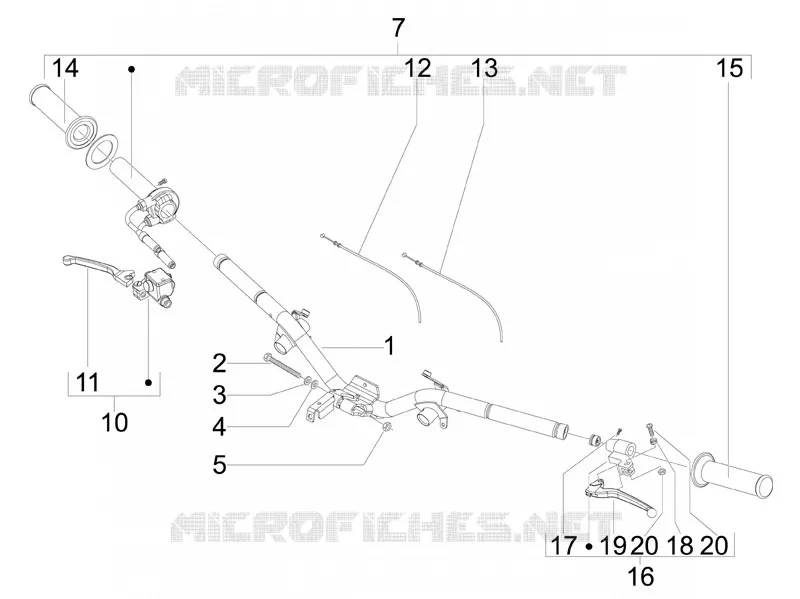

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
