1
Engine displacement
150
2
Model
LX
3
Year
2006
4
Trim
LX 4T
5
Parts Catalog
Wheel huosing - Mudguard
6

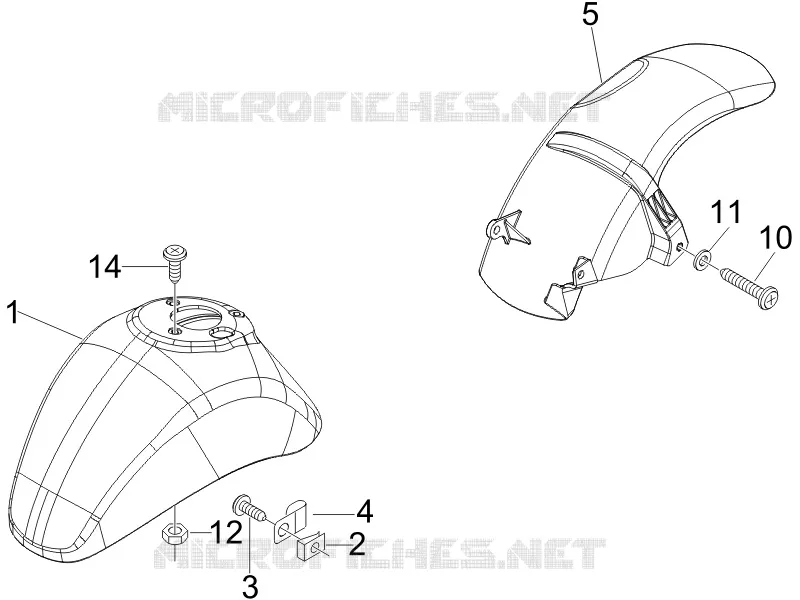

Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Flywheel magneto
Wheel huosing - Mudguard
1
2
3
4
5
10
11
12
14
1
Mudguard
60041540F3
Not Available
1
Mudguard
60041540R7
Not Available
1
FF MUDGUARD ET/RST
6004154087
$202,43 Unit Price incl. VAT
1
Mudguard
60041540AA
Not Available
1
Mudguard
60041540F2
Not Available
1
FF MUDGUARD V.LX
60041540DE
Not Available
1
Mudguard
60041540BM
Not Available
1
FF MUDGUARD ET/RST
60041540D9
Not Available
1
FF MUDGUARD VESPA ET RST UNPAINTED
60041540AF
Not Available
1
Mudguard
60041540ND
Not Available
2
Spring plate
CM017410
$0,34 Unit Price incl. VAT
3
screw
015900
$2,95 Unit Price incl. VAT
4
Hose clamp
562919
$3,65 Unit Price incl. VAT
5
Rear mudguard
575079
$66,71 Unit Price incl. VAT
10
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
11
Spring washer
709047
$0,08 Unit Price incl. VAT
12
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
