by

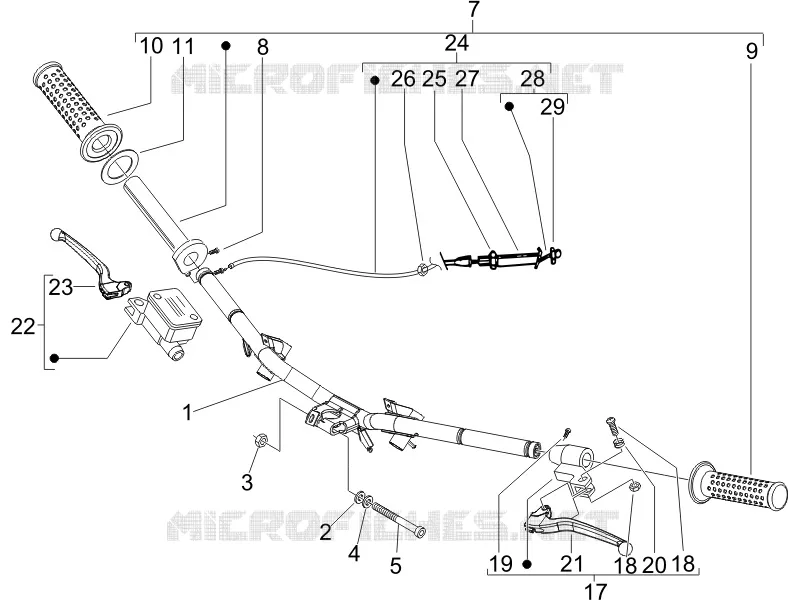

Handlebars - Master cil.
1
2
3
4
5
7
8
9
10
11
17
18
18
19
20
21
22
23
24
25
26
27
28
29
1
Handlebar
6221935
Not Available
2
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
3
Nut M10
015330
$0,25 Unit Price incl. VAT
4
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
5
screw
223605
Not Available
7
Hose
CM060966
$81,00 Unit Price incl. VAT
8
Screw with bushing
123394
$3,70 Unit Price incl. VAT
9
Grip, l.h.
274489
$13,41 Unit Price incl. VAT
10
RH hand grip
274491
$12,19 Unit Price incl. VAT
11
Ring 38,3x27x1,2
562923
$2,99 Unit Price incl. VAT
17
Left hand grip with rear brake lever
CM063804
$51,30 Unit Price incl. VAT
18
Screw with nut
265249
$3,70 Unit Price incl. VAT
19
Screw with bushing
123394
$3,70 Unit Price incl. VAT
20
Spring
267948
$4,89 Unit Price incl. VAT
21
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
22
Brakes pump
56216R
Not Available
23
Fr. br. lever GRIMECA
646803
$90,45 Unit Price incl. VAT
23
Brake lever
646833
Not Available
24
Gas lever transmission
CM065917
Not Available
25
Nut
002613
$2,25 Unit Price incl. VAT
26
Nut
020105
$0,25 Unit Price incl. VAT
27
Guard
147511
$2,95 Unit Price incl. VAT
28
Adjuster screw
269145
$1,30 Unit Price incl. VAT
29
Nut M6
020206
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
