Engine displacement
125
2
Model
LX
3
Year
2011
4
Trim
LX 4T ie E3
5
Parts Catalog
Transmissions
6
Parts Diagram
Parts Catalog
Swinging arm
by
Plates - Emblems
Transmissions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Speedometer transmission
651138
$15,23 Unit Price incl. VAT
2
Registro freno posteriore
270310
$1,68 Unit Price incl. VAT
3
Registro freno posteriore
598918
$5,07 Unit Price incl. VAT
4
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
5
Plate
564645
$3,65 Unit Price incl. VAT
6
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
7
Non return spring l=27
CM006904
$0,25 Unit Price incl. VAT
8
Spring
CM013201
$0,40 Unit Price incl. VAT
9
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
10
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
11
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
12
Plate
CM017408
$0,25 Unit Price incl. VAT
13
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
14
Rear brake transmission
651018
$20,42 Unit Price incl. VAT
15
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
16
Adjuster pin
179640
$1,09 Unit Price incl. VAT

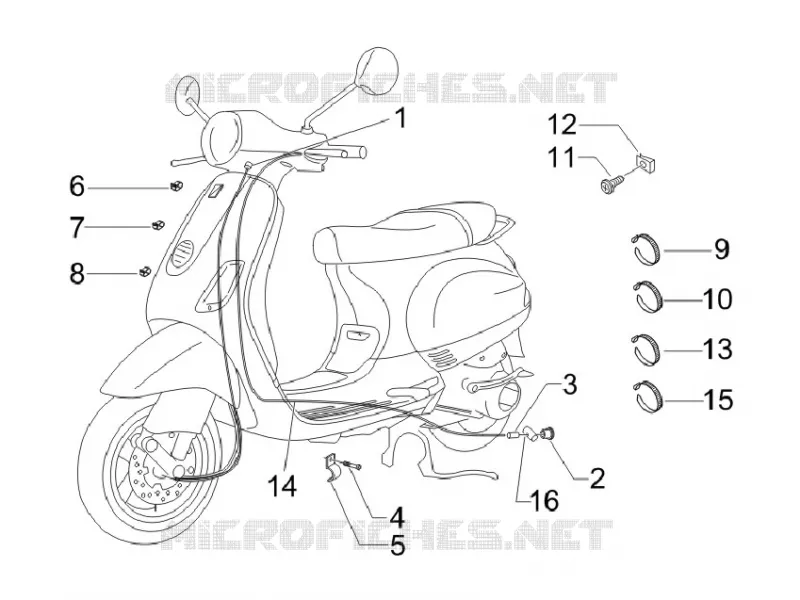

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
