Engine displacement
125
2
Model
LX
3
Year
2011
4
Trim
LX 4T ie E3
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Front glove-box - Knee-guard panel
Driven pulley
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Clutch driven pulley assy.
CM163701
$99,35 Unit Price incl. VAT
2
Fixed driven half pulley
880513
$76,70 Unit Price incl. VAT
3
Snap ring
006628
$0,34 Unit Price incl. VAT
4
Roller cage 20x29x18
82518R
$12,62 Unit Price incl. VAT
5
Ball bearing
880512
$15,97 Unit Price incl. VAT
6
Complete movable half-driven pulley
880538
Not Available
7
Gasket ring
289950
$9,17 Unit Price incl. VAT
8
Variator spring
B013304
$16,48 Unit Price incl. VAT
9
Pin
431092
Not Available
10
Pulley side cap
880539
$12,95 Unit Price incl. VAT
11
Clutch side cap
880543
$10,68 Unit Price incl. VAT
12
Complete centrifugal clutch assembly
CM163801
Not Available
13
Sliding washer
880540
$2,69 Unit Price incl. VAT
14
Ring nut
289955
$8,58 Unit Price incl. VAT
15
Gasket
289840
$1,26 Unit Price incl. VAT
16
Clutch drum
880623
$17,09 Unit Price incl. VAT
17
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
18
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
19
Spring seat
880541
$4,79 Unit Price incl. VAT
20
Roller
431091
$0,67 Unit Price incl. VAT

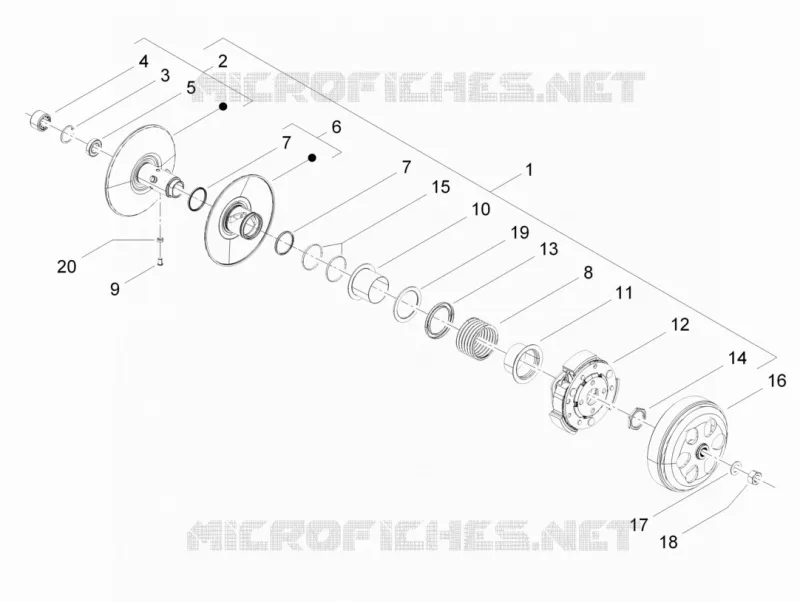

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
