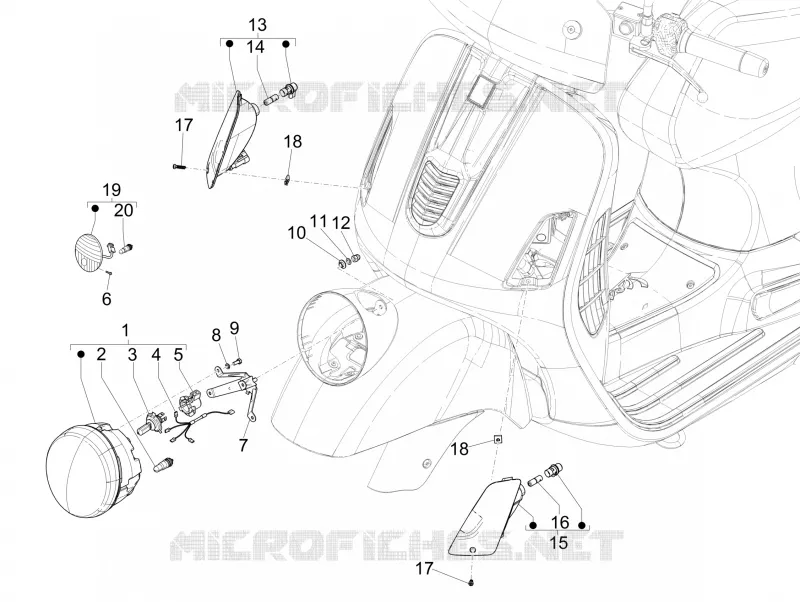

Front headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
1
Reflector, assy.
639846
$141,75 Unit Price incl. VAT
2
12V-5W bulb
2920225
$1,10 Unit Price incl. VAT
3
Halogen Lamp H4 12V-60/55W
640280
$25,38 Unit Price incl. VAT
4
Headlamp cable harness
638563
$26,13 Unit Price incl. VAT
5
Lampholder
253327
$4,82 Unit Price incl. VAT
6
Self tapping screw
297498
$0,08 Unit Price incl. VAT
7
Headlight support bracket
648297
$20,60 Unit Price incl. VAT
8
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
9
screw M5x12
031056
$0,09 Unit Price incl. VAT
10
Knurled bushing
830056
$0,34 Unit Price incl. VAT
11
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
12
Nut
648349
$3,65 Unit Price incl. VAT
13
RH front turn indicator
638715
$36,45 Unit Price incl. VAT
14
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
15
LH front turn indicator
638716
$36,45 Unit Price incl. VAT
16
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
17
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
18
Plate
CM017406
$3,65 Unit Price incl. VAT
19
Front position light.
584726
$47,25 Unit Price incl. VAT
20
12V-5W bulb
2920225
$1,10 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
