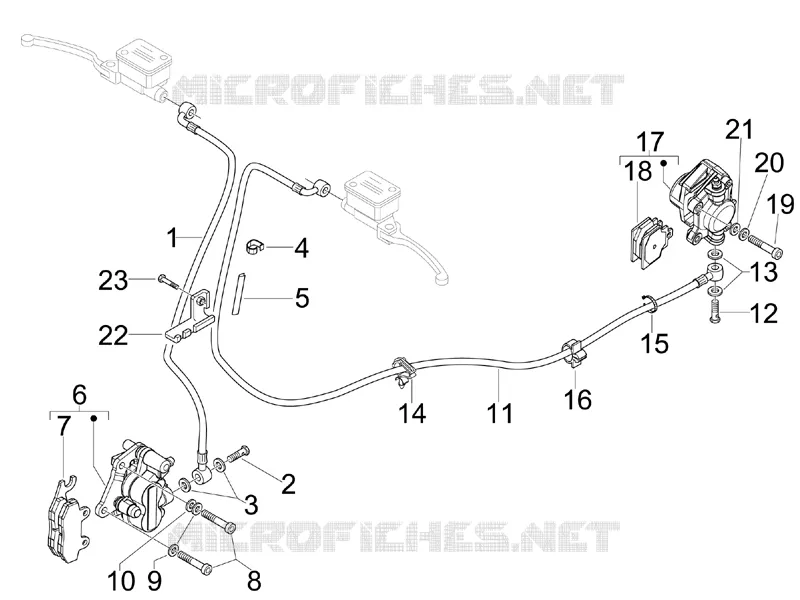

Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Rear brake hydraulic piping
648162
$36,15 Unit Price incl. VAT
2
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
3
Gasket
127927
$0,25 Unit Price incl. VAT
4
Hose clamp
564761
$0,38 Unit Price incl. VAT
5
Guard
656656
$6,15 Unit Price incl. VAT
6
Brake caliper Heng Tong
CM068301
Not Available
7
Brake pads couple Heng Tong
647078
$35,62 Unit Price incl. VAT
8
screw
319532
$3,65 Unit Price incl. VAT
9
Spring washer
709047
$0,08 Unit Price incl. VAT
10
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
11
Rear brake hydraulic piping.
647975
Not Available
12
screw
648336
$3,65 Unit Price incl. VAT
13
Gasket
127927
$0,25 Unit Price incl. VAT
14
Hose clamp
597418
$3,65 Unit Price incl. VAT
15
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
16
Molletta
CM006910
$0,25 Unit Price incl. VAT
17
Pinza freno Heng Tong
CM074101
$86,40 Unit Price incl. VAT
18
Rear Brake pads couple.
647161
$36,45 Unit Price incl. VAT
19
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
20
Spring washer
709047
$0,08 Unit Price incl. VAT
21
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
22
Bracket with up
649635
$6,30 Unit Price incl. VAT
23
Screw M6x16
272836
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
