Crankcase for GILERA PIAGGIO VESPA GTS ie from 2013

Crankcase

1

Crankcase assembly cat1

1A0009740A

Not Available

1

Crankcase assembly cat2

B0172810002

Not Available

1

Crankcase assembly cat1

B0172810001

Not Available

1

Crankcase assembly cat2

1A0009740B

Not Available

2

Stud bolt

877285

Not Available

2

PRIGIONIERO TESTA/CILINDRO

1A003628R

$10,95 Unit Price incl. VAT

3

VITE TESTA ESAG. FLANG. M6x60 UNI-1665

B016425

$1,01 Unit Price incl. VAT

4

SPINA RIFERIMENTO (D.9,5 H=15)

B015956

$0,75 Unit Price incl. VAT

5

CUSCINETTO RADIALE 15.42.13

83018R

$4,46 Unit Price incl. VAT

6

GRANO DI RIFERIMENTO

B015957

$0,59 Unit Price incl. VAT

7

ANELLO ELASTICO (12x26,9x1,2)

B015959

$0,34 Unit Price incl. VAT

8

Radial ball bearing 20x47x14

833701

Not Available

9

ANELLO DI TENUTA 20-32-7

82878R

$10,25 Unit Price incl. VAT

10

SPINA RIFERIMENTO (D.9,5 H=15)

B015956

$0,75 Unit Price incl. VAT

11

UGELLO CALIBRATO

484034

$6,44 Unit Price incl. VAT

12

UGELLO CALIBRATO PER CARTER D.1,1

844582

$0,05 Unit Price incl. VAT

13

SILENTBLOC ATT.MOTORE

486081

$6,73 Unit Price incl. VAT

14

PERNO AGG. MOLLE CAVALLETTO

483785

$5,45 Unit Price incl. VAT

15

GUARNIZIONE SEMICARTER

875111

$3,34 Unit Price incl. VAT

16

Screw M5x10

018575

$2,95 Unit Price incl. VAT

17

VALVOLA REGOL.PRESSIONE OLIO

829661

$6,44 Unit Price incl. VAT

18

MOLLA VALVOLA PRESS.OLIO

485655

$1,26 Unit Price incl. VAT

19

PARATIA OLIO

483767

$0,38 Unit Price incl. VAT

20

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

21

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

22

ASTA LIVELLO OLIO COMPL.

832130

$2,94 Unit Price incl. VAT

23

ANELLO DI TENUTA (O-RING)

827085

$2,99 Unit Price incl. VAT

24

PARATIA OLIO SUPERIORE

485047

$0,48 Unit Price incl. VAT

25

INSERTO PORTA FILTRO COMPL.

845861

$3,82 Unit Price incl. VAT

26

GUARNIZIONE SEZ.CIRCOLARE

431065

$0,42 Unit Price incl. VAT

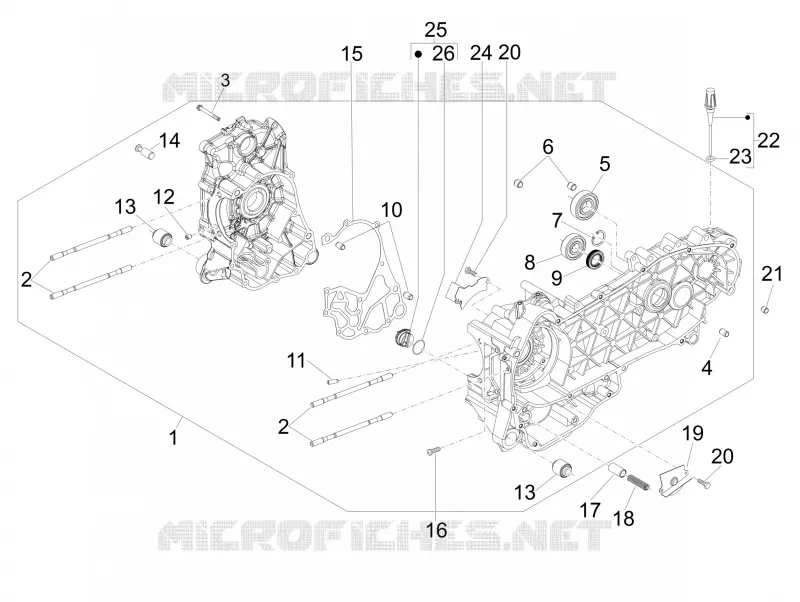

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
