Handlebars - Master cil. for GILERA PIAGGIO VESPA GTS ie from 2013

Flywheel magneto cover - Oil filter

Rear headlamps - Turn signal lamps

Handlebars - Master cil.

1

Handlebar with U.P.

6526455

Not Available

1

MANUBRIO CON P.I.

1B001059

$173,98 Unit Price incl. VAT

2

VITE A TESTA CILINDRICA ESAGONO INCASS.

655554

$3,70 Unit Price incl. VAT

2

VITE A TESTA CILINDR.CON ESAGONO INCAS.

668874

$2,95 Unit Price incl. VAT

3

RONDELLA ELASTICA PIANA DENT.INTERNA

012543

$0,08 Unit Price incl. VAT

4

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

5

ECROU

015330

$0,25 Unit Price incl. VAT

6

MANICOTTO COMANDO GAS COMPL.

CM079729

$120,49 Unit Price incl. VAT

7

MANOPOLA DESTRA

271453

$13,37 Unit Price incl. VAT

8

TRASMISSIONE COMANDO APERTURA GAS

650639

$64,80 Unit Price incl. VAT

9

TRASMISSIONE COM.CHIUSURA GAS

648076

$37,80 Unit Price incl. VAT

10

MANOPOLA SINISTRA

271452

$13,37 Unit Price incl. VAT

11

TERMINALE MANUBRIO

673243

$24,38 Unit Price incl. VAT

12

screw M6x55

271434

Not Available

13

POMPA IDR.COMANDO FRENO POST.

CM074801

$180,90 Unit Price incl. VAT

13

POMPA IDRAULICA C.DO FRENO POSTERIORE

CM074806

$209,80 Unit Price incl. VAT

14

LEVA FRENO

497042

$18,36 Unit Price incl. VAT

15

POMPA COMANDO FRENO ANT.

CM074901

$125,55 Unit Price incl. VAT

15

POMPA IDRAULICA FRENO

CM074907

$101,25 Unit Price incl. VAT

16

LEVA FRENO

497042

$18,36 Unit Price incl. VAT

17

MOLLETTA

657046

$3,65 Unit Price incl. VAT

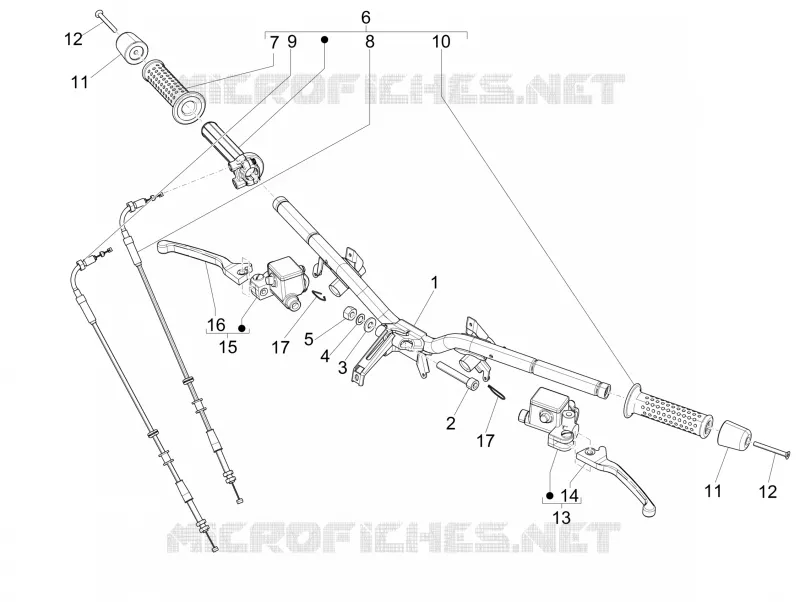

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
