Crankcase for GILERA PIAGGIO VESPA GTS ie from 2010

Crankcase

1

Crankcase assembly Cat.1

8786935001

Not Available

1

Crankcase assembly Cat.2

8786935002

Not Available

2

Stud bolt

877285

Not Available

3

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

4

Pin 6,5x9,5x15

239388

Not Available

5

CUSCINETTO RADIALE 15.42.13

83018R

$4,46 Unit Price incl. VAT

5

Radial ball bearing 15x42x13

485912

Not Available

6

Locating dowel Ã˜11x10

478115

$0,24 Unit Price incl. VAT

7

Circlip 25x26.9x1.2

000674

Not Available

8

Radial ball bearing 20x47x14

82990R

Not Available

8

Radial ball bearing 20x47x14

833701

Not Available

9

ANELLO DI TENUTA 20-32-7

82878R

$10,25 Unit Price incl. VAT

10

Pin 6,5x9,5x15

239388

Not Available

11

UGELLO CALIBRATO

484034

$6,44 Unit Price incl. VAT

12

UGELLO CALIBRATO PER CARTER D.1,1

844582

$0,05 Unit Price incl. VAT

13

SILENTBLOC ATT.MOTORE

486081

$6,73 Unit Price incl. VAT

14

PERNO AGG. MOLLE CAVALLETTO

483785

$5,45 Unit Price incl. VAT

15

GUARNIZIONE SEMICARTER

875111

$3,34 Unit Price incl. VAT

16

Screw M5x10

018575

$2,95 Unit Price incl. VAT

17

VALVOLA REGOL.PRESSIONE OLIO

829661

$6,44 Unit Price incl. VAT

18

MOLLA VALVOLA PRESS.OLIO

485655

$1,26 Unit Price incl. VAT

19

PARATIA OLIO

483767

$0,38 Unit Price incl. VAT

20

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

21

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

22

ASTA LIVELLO OLIO COMPL.

832130

$2,94 Unit Price incl. VAT

23

ANELLO DI TENUTA (O-RING)

827085

$2,99 Unit Price incl. VAT

24

PARATIA OLIO SUPERIORE

485047

$0,48 Unit Price incl. VAT

25

INSERTO PORTA FILTRO COMPL.

845861

$3,82 Unit Price incl. VAT

26

GUARNIZIONE SEZ.CIRCOLARE

431065

$0,42 Unit Price incl. VAT

27

VITE TESTA ESAG. FLANG. M6x60 UNI-1665

B016425

$1,01 Unit Price incl. VAT

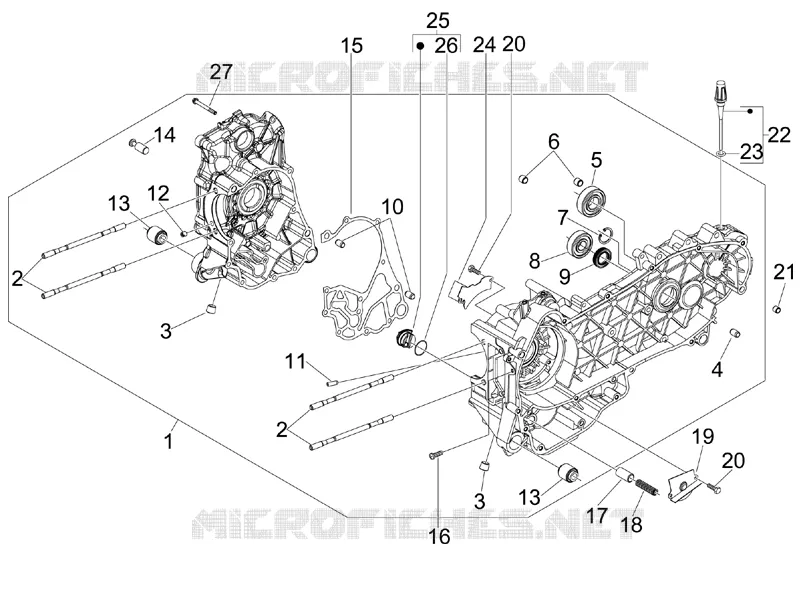

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
