Main cable harness for GILERA PIAGGIO VESPA GTS ie from 2010

Main cable harness

1

Frame harness

641751

Not Available

1

GRUPPO CAVETTI DEL TELAIO

641669

$494,91 Unit Price incl. VAT

2

FUSIBILE 7,5 A

252945

$0,42 Unit Price incl. VAT

2

FUSIBILE LITTELFUSE VERDE

CM225730

$0,51 Unit Price incl. VAT

2

FUSIBILE LAMELLARE 15A

290860

$5,73 Unit Price incl. VAT

3

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

4

STAFFA PORTAFUSIBILE

641532

$4,82 Unit Price incl. VAT

5

CAVO DI MASSA MOTORE

584843

$9,18 Unit Price incl. VAT

6

VITE AUTOMASC.TESTA ESAG.TRILOBATA

641204

$0,34 Unit Price incl. VAT

7

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

8

RONDELLA PIANA 6,4x12x1

003056

$0,08 Unit Price incl. VAT

9

Electrical system cover

656332

$10,76 Unit Price incl. VAT

10

VITE AUTOFILETTANTE (IMPRONTA TORX)

CM178603

$0,16 Unit Price incl. VAT

11

TASSELLO

199190

$2,95 Unit Price incl. VAT

12

MOLLETTA RITEGNO TUBI

CM006902

$0,92 Unit Price incl. VAT

13

MOLLETTA RITEGNO TUBI/CAVI

CM013202

$1,10 Unit Price incl. VAT

14

MOLLETTA RITEGNO TUBI

CM006904

$0,25 Unit Price incl. VAT

15

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

16

FASCETTA

638792

$4,82 Unit Price incl. VAT

17

VITE AUTOMASCHIANTE

433800

$0,19 Unit Price incl. VAT

18

RONDELLA PIANA 12x5,2x1

006078

$0,08 Unit Price incl. VAT

19

STAFFA SUPPORTO CONNETTORI

656331

$28,44 Unit Price incl. VAT

20

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

21

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

22

MOLLA PER CONNETTORE

584520

$5,38 Unit Price incl. VAT

23

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

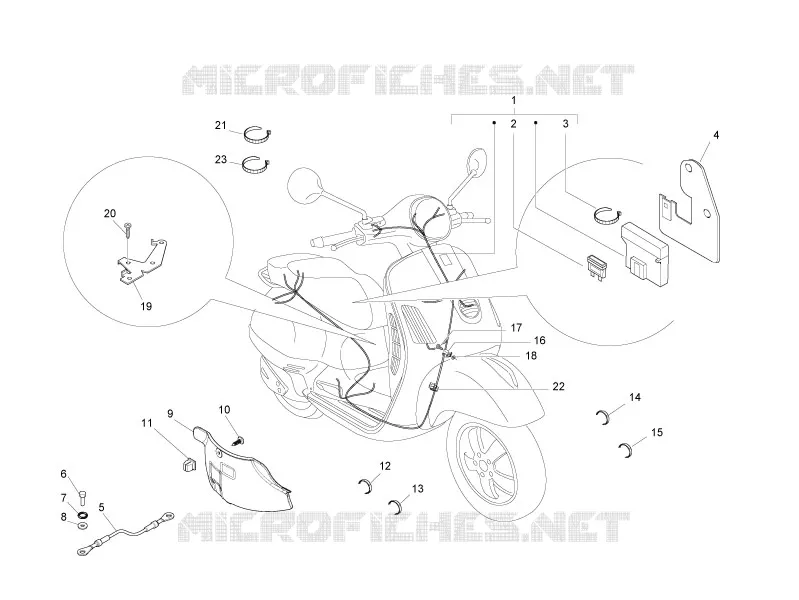

Find the detailed Main cable harness GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
