Driven pulley for GILERA PIAGGIO VESPA GTS ie from 2013

Fork/steering tube - Steering bearing unit

Rocking levers support unit

Driven pulley

1

Secondary pulley

CM144134

Not Available

2

Sec. fixed sheave, complete

878647

Not Available

3

ANELLO ELASTICO

483226

$0,72 Unit Price incl. VAT

4

ASTUCCIO RULLINI 20.29.18

82518R

$12,62 Unit Price incl. VAT

5

CUSCINETTO A SFERE

82753R

$19,17 Unit Price incl. VAT

6

PERNO FRIZIONE

828717

$0,34 Unit Price incl. VAT

7

Sec. sliding sheave, complete

878651

Not Available

8

ANELLO DI TENUTA k9

431089

$2,55 Unit Price incl. VAT

9

GUARNIZIONE A SEZ.CIRCOLARE

430585

$4,89 Unit Price incl. VAT

10

ANELLO DI TENUTA (O-RING)

834044

$3,65 Unit Price incl. VAT

11

SCODELLINO LATO PULEGGIA

833674

$9,70 Unit Price incl. VAT

12

MOLLA CONTRASTO VARIATORE

833673

$8,77 Unit Price incl. VAT

13

SCODELLINO LATO FRIZIONE

487936

$5,73 Unit Price incl. VAT

14

Centrifugal clutch assy

8722515

Not Available

16

GHIERA

433232

$2,31 Unit Price incl. VAT

17

TAMBURO FRIZIONE (era 844049)

8440494

$26,86 Unit Price incl. VAT

18

RONDELLA PIANA D22 F12,1 S1

274246

$0,34 Unit Price incl. VAT

19

DADO ESAGONALE NORMALE

486324

$0,50 Unit Price incl. VAT

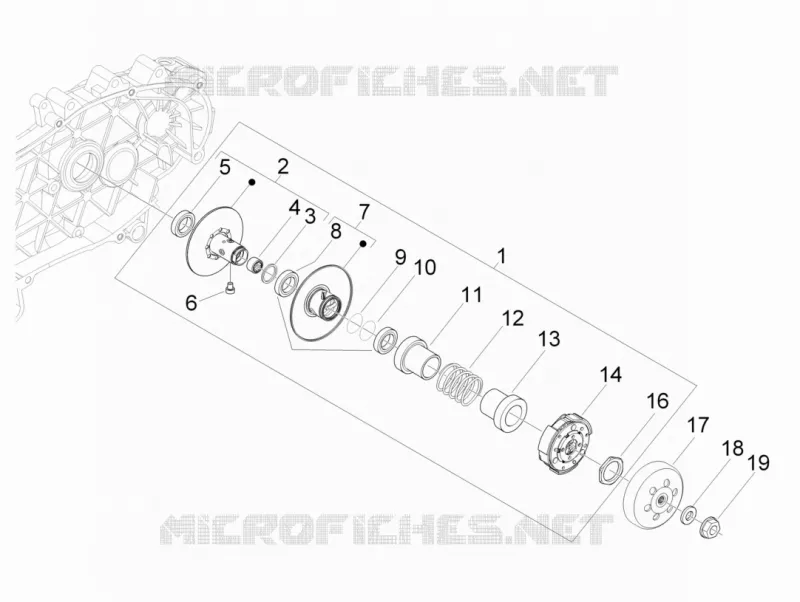

Find the detailed Driven pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
