Side cover - Spoiler for GILERA PIAGGIO VESPA GTS ie from 2013

Side cover - Spoiler

1

Right side cover

62113800HA

Not Available

1

Right side cover

62113800XN2

Not Available

1

Right side cover

621138

$102,98 Unit Price incl. VAT

1

Right side cover

62113800DE

Not Available

1

Right side cover

62113800R7

Not Available

1

COPERTURA LAT.DX

62113800GV

$127,87 Unit Price incl. VAT

2

Left side cover

62113700DE

Not Available

2

Left side cover

621137

Not Available

2

Left side cover

62113700R7

Not Available

2

Left side cover

62113700HA

Not Available

2

COPERTURA LAT.SX

62113700GV

$127,87 Unit Price incl. VAT

2

Left side cover

62113700XN2

Not Available

3

RH terminal

57747400HA

$56,87 Unit Price incl. VAT

3

TERMINALE DX PER SPOILER

57747400GV

$56,87 Unit Price incl. VAT

3

RH terminal

577474

Not Available

3

RH terminal

57747400XN2

Not Available

3

RH terminal

57747400DE

Not Available

3

Spoiler right terminal

57747400R7

Not Available

4

LH terminal

57747300HA

$56,87 Unit Price incl. VAT

4

Spoiler left terminal

57747300R7

Not Available

4

LH terminal

57747300XN2

Not Available

4

TERMINALE SX PER SPOILER

57747300GV

$56,87 Unit Price incl. VAT

4

LH terminal

577473

Not Available

4

LH terminal

57747300DE

Not Available

5

VITE AUTOFILET.CON IMPRONTA TORX

CM178601

$0,16 Unit Price incl. VAT

6

TASSELLO

199190

$2,95 Unit Price incl. VAT

7

VITE AUTOFILETTANTE (IMPRONTA TORX)

CM178609

$0,17 Unit Price incl. VAT

8

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

9

Elastic drift

463195

Not Available

10

PIASTRINA CON VITE

623575

$3,65 Unit Price incl. VAT

11

DADO ES.FLG.M6 DIN-6923

288245

$0,16 Unit Price incl. VAT

12

VITE AUTOFILETTANTE (IMPRONTA TORX)

CM179101

$0,30 Unit Price incl. VAT

13

TAPPO PER SPOILER

577405000C

$10,76 Unit Price incl. VAT

14

PIASTRINA ELASTICA

181351

$0,17 Unit Price incl. VAT

15

Lh reflector

584926

Not Available

16

GUARNIZIONE

584995

$4,82 Unit Price incl. VAT

17

Rh reflector

58234R

Not Available

18

PIASTRINA ELASTICA

181351

$0,17 Unit Price incl. VAT

19

GUARNIZIONE

584995

$4,82 Unit Price incl. VAT

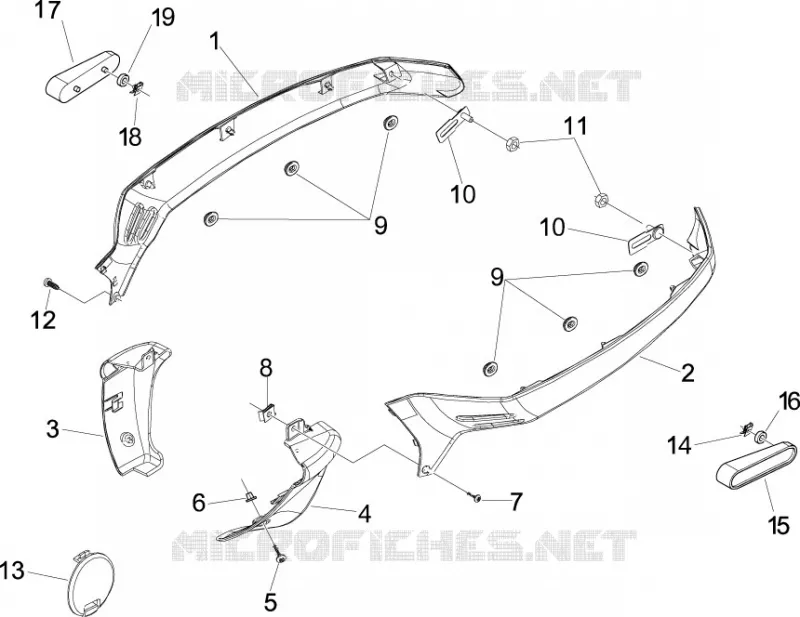

Find the detailed Side cover - Spoiler GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
