1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Main cable harness
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Helmet huosing - Undersaddle
Main cable harness
1
1
1
2
3
3
3
4
4
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Cable harness
639067
Not Available
1
Cable harness
639914
Not Available
2
MORSETTIERA P/FUSIB.6 VIE
584211
$26,74 Unit Price incl. VAT
3
FUSIBILE LAMELLARE 10
292507
$0,42 Unit Price incl. VAT
4
FUSIBILE 7,5 A
252945
$0,42 Unit Price incl. VAT
5
FUSIBILE LAMELLARE 15A
290860
$5,73 Unit Price incl. VAT
6
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT
7
PORTAFUSIBILI (PER 2 FUSIBILI "A LAMA")
580653
$35,69 Unit Price incl. VAT
8
Fuse 30A
581440
Not Available
9
STAFFA SUPPORTO CONNETTORI
639026
$7,23 Unit Price incl. VAT
10
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
11
STAFFA SUPPORTO FUSIBILI
638934
$6,30 Unit Price incl. VAT
12
VITE TESTA ESAGON.FLANG. M6X10
969296
$0,16 Unit Price incl. VAT
13
GR.CAVETTI SERBATOIO
639030
$17,01 Unit Price incl. VAT
14
MOLLETTA RITEGNO TUBI
CM006903
$1,43 Unit Price incl. VAT
14
MOLLETTA RITEGNO TUBI
CM006902
$0,92 Unit Price incl. VAT
15
MOLLETTA RITEGNO TUBI/CAVI
CM006906
$1,26 Unit Price incl. VAT
16
MOLLETTA RITEGNO TUBI
CM006904
$0,25 Unit Price incl. VAT
17
FASCETTA A STRAPPO
257134
$0,25 Unit Price incl. VAT
18
MOLLETTA RITEGNO TUBI/CAVI
CM013202
$1,10 Unit Price incl. VAT
19
MOLLA PER CONNETTORE
584520
$5,38 Unit Price incl. VAT
20
PROTEZIONE BORDO SCOCCA
583282
$7,80 Unit Price incl. VAT
21
STAFFA
639843
$6,30 Unit Price incl. VAT

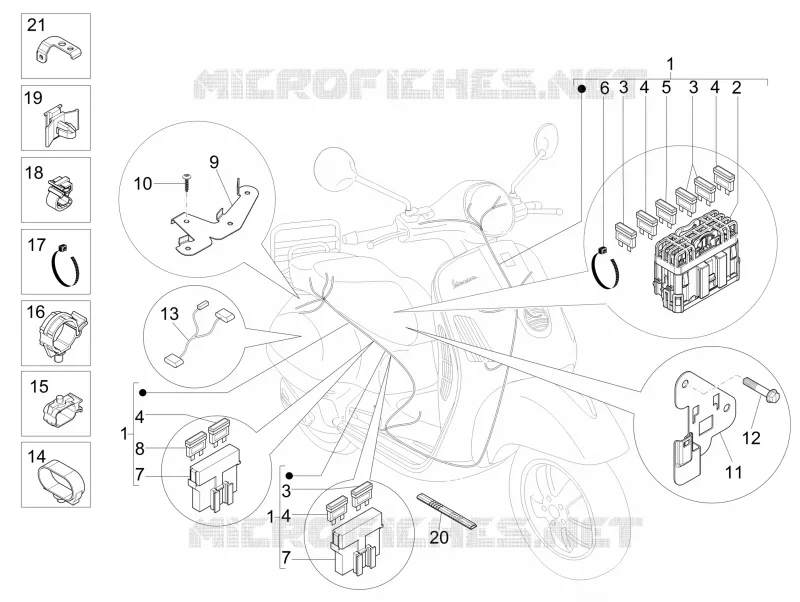

Find the detailed Main cable harness GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
