1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS ABS
5
Parts Catalog
Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Saddle/seats
by
Head unit - Valve
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
31
32
33
34
35
36
37
38
39
40
40
41
42
43
45
46
47
48
50
51
52
53
54
55
56
57
1
Pressure modulator
601786
Not Available
2
DADO ESAGONALE M8 6H H=6,5
020108
$0,08 Unit Price incl. VAT
3
VITE TE M8X22 CL8.8 k6
031119
$3,65 Unit Price incl. VAT
4
Spacer
600276
Not Available
5
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
6
FASCETTA STRINGITUBO
CM002903
$2,95 Unit Price incl. VAT
6
PASSACAVO
834040
$5,00 Unit Price incl. VAT
7
GR.VALVOLA REGOL.PRESSIONE FRENATA
646905
Not Available
8
VITE TESTA ESAGON.GAMBO INTER.FILETT.
031091
$0,17 Unit Price incl. VAT
9
Valve
597912
Not Available
10
VITE TESTA ESAGON.GAMBO INTER.FILETT.
031091
$0,17 Unit Price incl. VAT
11
DADO SERRAGGIO
969224
$0,42 Unit Price incl. VAT
12
MOLLETTA RITEGNO TUBI
CM006911
$0,42 Unit Price incl. VAT
13
FASCETTA
564629
$2,50 Unit Price incl. VAT
14
DADO AUTOFRENANTE
241936
$0,08 Unit Price incl. VAT
15
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
16
VITE TE M8X22 CL8.8 k6
031119
$3,65 Unit Price incl. VAT
17
Spacer
600276
Not Available
18
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
19
PASSACAVO
834040
$5,00 Unit Price incl. VAT
20
TUBAZIONE FRENO POMPA SX / VALVOLA
601686
Not Available
21
Rear brake tube
601688
Not Available
22
TUBAZIONE FRENO
601689
Not Available
23
TUBO OLIO BASSA PRESSIONE
601835
Not Available
24
Piping
646867
Not Available
25
Brake hose
647042
Not Available
26
FASCETTA A STRAPPO
257134
$0,25 Unit Price incl. VAT
27
FASCETTA
564761
$0,38 Unit Price incl. VAT
28
FASCETTA GOMMA LG=35
307166
$2,99 Unit Price incl. VAT
29
VITE ESP.TE M10X18
265451
$9,25 Unit Price incl. VAT
29
RACCORDO OLIO
597633
$3,21 Unit Price incl. VAT
31
Joint
600164
Not Available
31
RACCORDO IMP.FRENO
647149
Not Available
32
RONDELLA
600165
$0,12 Unit Price incl. VAT
33
VITE DI RACCORDO
600256
$1,44 Unit Price incl. VAT
34
Support bracket
601641
Not Available
35
TAMPONE ADESIVO
621485
$0,72 Unit Price incl. VAT
36
Soundproof cover
646762
Not Available
37
Braking system lower bracket
6468845
Not Available
38
Gasket
219165
Not Available
39
DADO SERRAGGIO
969224
$0,42 Unit Price incl. VAT
40
RONDELLA
127927
$0,25 Unit Price incl. VAT
41
Pinza freno Heng Tong
CM074101
$86,40 Unit Price incl. VAT
42
VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8
149104
$0,51 Unit Price incl. VAT
43
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
45
RONDELLA PIANA METALLI
828961
$0,28 Unit Price incl. VAT
46
Brake caliper Heng Tong
CM068301
Not Available
47
RONDELLA PIANA
003058
$0,08 Unit Price incl. VAT
48
VITE
598919
$2,27 Unit Price incl. VAT
50
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
51
RONDELLA
127927
$0,25 Unit Price incl. VAT
52
VITE ESP.TE M10X18
265451
$9,25 Unit Price incl. VAT
53
BREAK PIPES
601690
Not Available
54
KIT PASTICCHE FRENO
647078
$35,62 Unit Price incl. VAT
55
COPPIA PASTICCHE FRENO
647161
$36,45 Unit Price incl. VAT
56
VITE ESAGONALE FLANGIATA M6x30
B016792
$0,25 Unit Price incl. VAT
57
FASCETTA
597418
$3,65 Unit Price incl. VAT

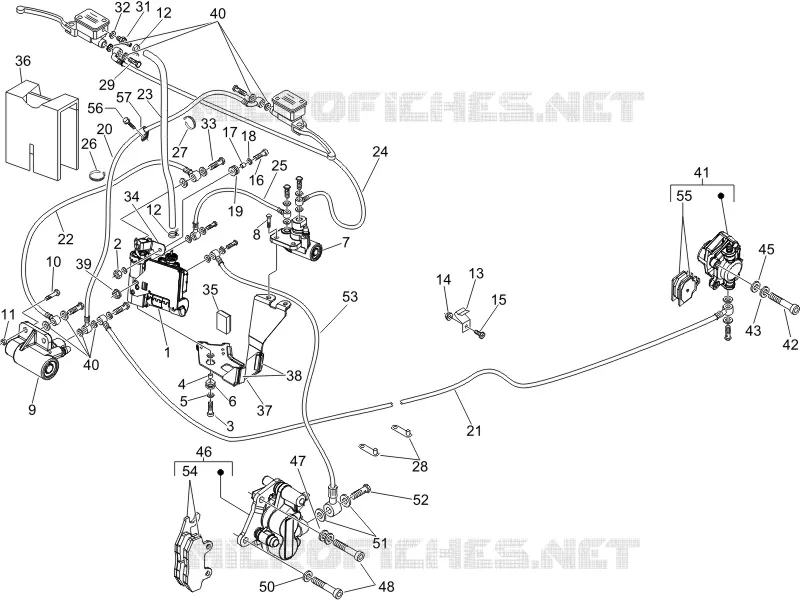

Find the detailed Brakes pipes - Calipers GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
