Crankcase cover - Crankcase cooling for GILERA PIAGGIO VESPA GTS from 2007

Crankcase cover - Crankcase cooling

1

COPERCHIO TRASMISSIONE CON P.I.

8714725

$258,52 Unit Price incl. VAT

2

ANELLO ELASTICO

006635

$0,25 Unit Price incl. VAT

3

Bearing

478985

Not Available

4

Pin 6,5x9,5x15

239388

Not Available

5

Screw w/ flange M6x30

289731

Not Available

6

FASCETTA

844964

$0,25 Unit Price incl. VAT

7

COPERCHIO RAFFREDDAMENTO

842090

$5,06 Unit Price incl. VAT

8

VITE AUTOFILETTANTE (3X20)

258146

$0,25 Unit Price incl. VAT

9

ELEMENTO FILTRANTE

842093

$0,92 Unit Price incl. VAT

10

VITE AUTOFIL. TBCIC 3,8x16

270793

$0,08 Unit Price incl. VAT

11

DEVIATORE ARIA COMPL.

834266

$4,30 Unit Price incl. VAT

12

VITE TBC M5X10

430264

$2,99 Unit Price incl. VAT

13

COPERCHIETTO COP.TRASMISS."VESPA"

CM155106

$11,00 Unit Price incl. VAT

14

TAMPONE DI RITEGNO

871458

$1,09 Unit Price incl. VAT

15

Screw w/ flange M6x30

289731

Not Available

16

PIASTRINA

872493

$3,65 Unit Price incl. VAT

17

FASCETTA

597418

$3,65 Unit Price incl. VAT

18

Screw w/ flange M6x30

289731

Not Available

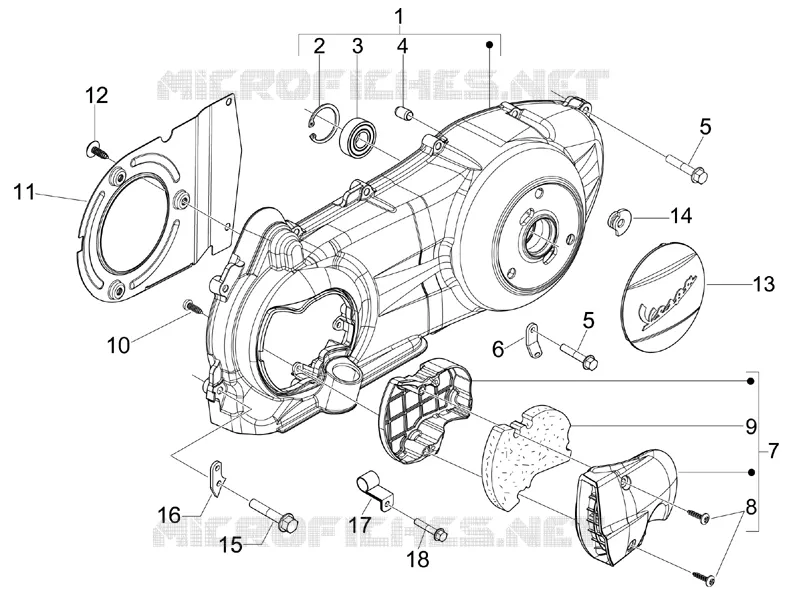

Find the detailed Crankcase cover - Crankcase cooling GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
