Rear suspension - Shock absorber/s for GILERA PIAGGIO VESPA GTS from 2007

Rear suspension - Shock absorber/s

1

Complete rear shock absorber

56234R

Not Available

2

TAMPONE SUPERIORE

178150

$0,92 Unit Price incl. VAT

3

DADO ESAGONALE NORMALE

021108

$0,25 Unit Price incl. VAT

4

RONDELLA PIANA

267038

$0,67 Unit Price incl. VAT

5

RONDELLA ELASTICA

016408

$0,08 Unit Price incl. VAT

6

Right arm

599593

Not Available

7

CUSCINETTO RADIALE RIGIDO

82545R

$12,11 Unit Price incl. VAT

8

DISTANZIALE

597528

$1,51 Unit Price incl. VAT

9

DADO ESAGONALE NORMALE

563728

$1,42 Unit Price incl. VAT

10

Nut hold cap

194423

$0,48 Unit Price incl. VAT

11

COPIGLIA

012789

$0,16 Unit Price incl. VAT

12

VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8

149104

$0,51 Unit Price incl. VAT

13

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

14

RONDELLA PIANA 16,5x8,1x1,5

013776

$0,34 Unit Price incl. VAT

15

DISTANZIALE RUOTA

848039

$18,12 Unit Price incl. VAT

16

RONDELLA D30 F10,2 S2

013962

$2,95 Unit Price incl. VAT

17

Self locking nut M10

232108

Not Available

17

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

18

STAFFA FISS.AMMORTIZZATORE POST.

598143

$5,38 Unit Price incl. VAT

19

VITE T.C.E.I. M8X50

844483

$0,67 Unit Price incl. VAT

20

BOCCOLA

597149

$3,65 Unit Price incl. VAT

21

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

22

VITE A TESTA ESAGONALE FLANG. PAR. FIL.

268158

$1,26 Unit Price incl. VAT

23

Self locking nut M10

232108

Not Available

23

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

24

STAFFA SUPORTO SILENTBLOC

601815

$67,48 Unit Price incl. VAT

25

BUSSOLA

273460

$0,75 Unit Price incl. VAT

26

SILENT BLOCK

272750

$12,52 Unit Price incl. VAT

27

VITE TE M10x20 CL8.8

031153

$3,65 Unit Price incl. VAT

28

Washer

709646

Not Available

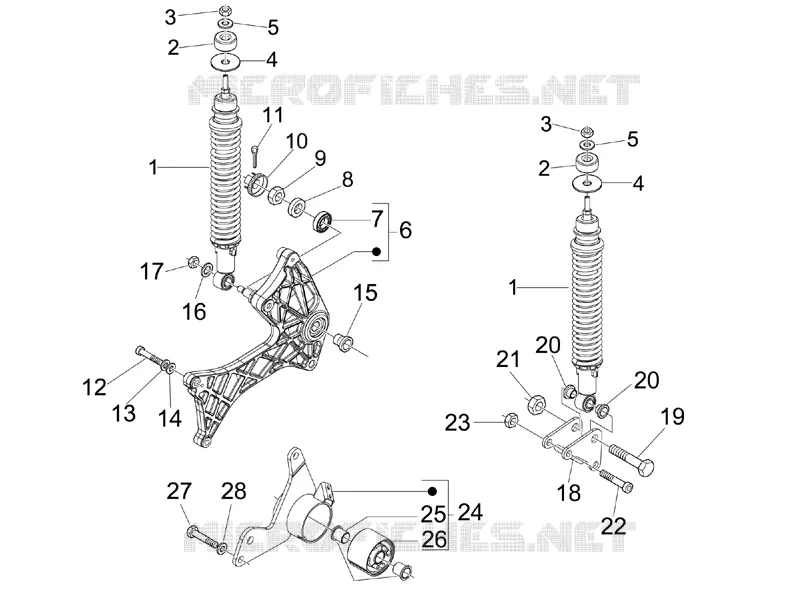

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
