Engine displacement
125
2
Model
GTS
3
Year
2008
4
Trim
GTS 4T E3
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Front shield
by
Front wheel
Swinging arm
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Chassis side swinging arm
56330R
Not Available
1
Chassis side swinging arm
56474R
Not Available
2
Bush
598917
$0,67 Unit Price incl. VAT
3
Roller cage
600161
$6,98 Unit Price incl. VAT
4
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
5
Hex socket screw M12x324
597914
$14,12 Unit Price incl. VAT
6
Washer
266845
$0,50 Unit Price incl. VAT
7
Nut M12
271740
$0,67 Unit Price incl. VAT
8
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
9
Spacer 290.00 mm
597857
$15,31 Unit Price incl. VAT
10
Self locking nut M10
232108
Not Available
11
Engine side swinging arm
599246
Not Available
12
Bush
597317
$0,92 Unit Price incl. VAT
13
Roller cage
597374
Not Available
14
Silent-block
599250
$8,65 Unit Price incl. VAT
15
Circlip
006416
$0,08 Unit Price incl. VAT
16
screw M10x220
598237
$7,65 Unit Price incl. VAT
17
Spacer
599077
$6,60 Unit Price incl. VAT
18
Nut
564878
$2,99 Unit Price incl. VAT
19
Spring
599059
$4,82 Unit Price incl. VAT

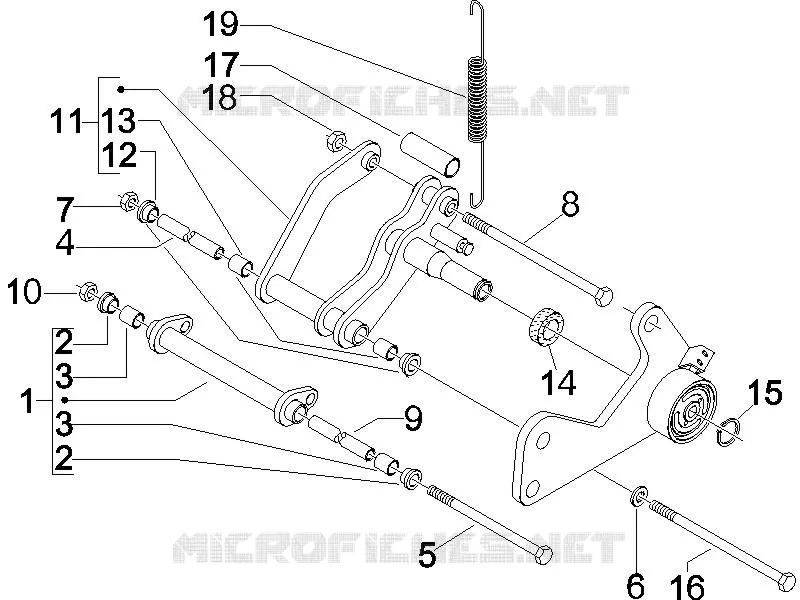

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
