Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Remote control switches - Battery - Horn
Driven pulley
1
2
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
1
Clutch driven pulley assy.
CM162403
$243,00 Unit Price incl. VAT
1
Clutch driven pulley assy.
CM162408
$111,62 Unit Price incl. VAT
2
Centrifugal clutch assembly
CM161202
$155,25 Unit Price incl. VAT
2
Centrifugal clutch assembly
B013246
$80,20 Unit Price incl. VAT
4
Gasket
430585
$4,89 Unit Price incl. VAT
5
Cup
431093
Not Available
6
Ring nut
433232
$2,31 Unit Price incl. VAT
7
Clutch side cap
487936
$5,73 Unit Price incl. VAT
8
Variator spring
872877
$12,02 Unit Price incl. VAT
9
Adjustable pulley, half
879002
$63,56 Unit Price incl. VAT
10
Gasket ring
431089
$2,55 Unit Price incl. VAT
11
Guide pin L=12,5
828717
$0,34 Unit Price incl. VAT
12
Fixed driven half pulley
830580
$69,28 Unit Price incl. VAT
13
Snap ring
483226
$0,72 Unit Price incl. VAT
14
Bearing 17x30x7
82753R
$19,17 Unit Price incl. VAT
15
Roller cage 20x29x18
82518R
$12,62 Unit Price incl. VAT
17
Fan
482305
$9,99 Unit Price incl. VAT
18
Clutch drum
844049
Not Available
19
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
20
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT

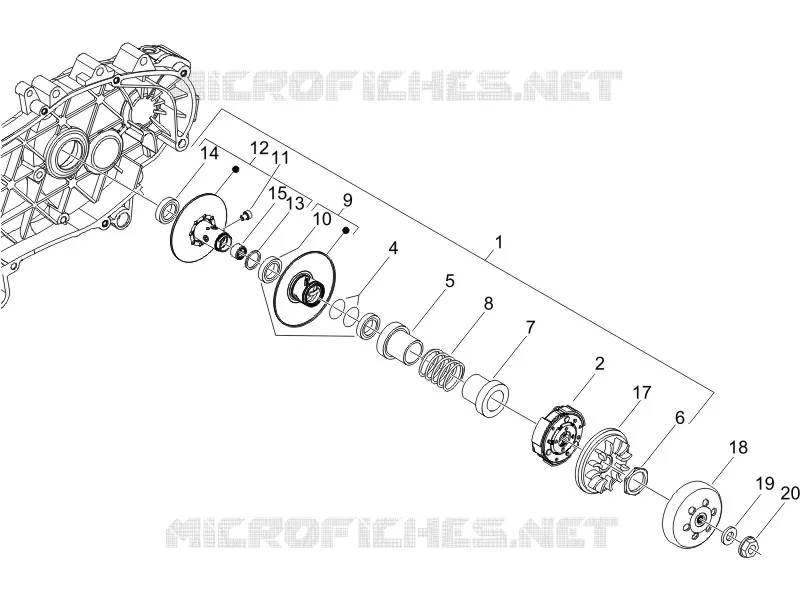

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
