1
Engine displacement
125
2
Model
GTS
3
Year
2009
4
Trim
GTS 4T E3
5
Parts Catalog
Front glove-box - Knee-guard panel
6

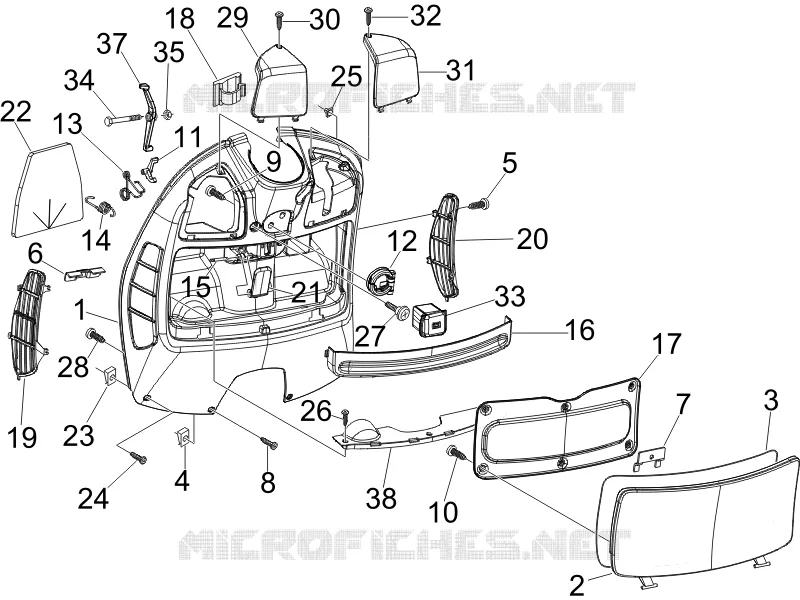

Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Carburettor, assembly - Union pipe
Front glove-box - Knee-guard panel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
37
38
1
Front glove comp.
57717400EU
Not Available
1
Front glove comp.
5771740090
Not Available
1
Front glove comp.
57717400F2
$656,14 Unit Price incl. VAT
1
Front glove comp.
57717400GP
Not Available
1
Front glove comp.
57717400DE
Not Available
1
Front glove comp.
577174
Not Available
1
Front glove comp.
57717400R7
Not Available
2
Glove compartment door
577175
$149,25 Unit Price incl. VAT
2
Glove compartment door
57717500EU
$185,67 Unit Price incl. VAT
2
Glove compartment door
57717500GP
$185,67 Unit Price incl. VAT
2
Glove compartment door
57717500DE
$185,67 Unit Price incl. VAT
2
Glove compartment door
57717500F2
Not Available
2
Glove compartment door
5771750090
$185,67 Unit Price incl. VAT
2
Glove compartment door
57717500R7
$185,67 Unit Price incl. VAT
3
Gasket
CM006307
Not Available
4
Spring plate
CM017410
$0,34 Unit Price incl. VAT
5
Plug screw
268596
$0,08 Unit Price incl. VAT
6
Square
252420
$0,59 Unit Price incl. VAT
7
Door fixing bracket
257614
$1,09 Unit Price incl. VAT
8
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
9
Plug screw
268596
$0,08 Unit Price incl. VAT
10
Self tapping screw
296141
$0,08 Unit Price incl. VAT
11
Pawl
575607
$1,35 Unit Price incl. VAT
12
Bag holder hook
575819
$12,88 Unit Price incl. VAT
13
Spring
577005
Not Available
14
Spring
577399
$2,61 Unit Price incl. VAT
15
Pin
577400
$5,38 Unit Price incl. VAT
16
Rim
577447
$10,76 Unit Price incl. VAT
17
Counter flap
577468
$27,67 Unit Price incl. VAT
18
Spring clamp
577594
$0,42 Unit Price incl. VAT
19
Net panel (l)
577856
Not Available
19
Net panel (l)
577856000C
Not Available
20
Net panel (r)
577857
Not Available
20
Net panel (r)
577857000C
$24,90 Unit Price incl. VAT
21
Lever
577861
$1,35 Unit Price incl. VAT
22
Sound proof panel
620693
$7,23 Unit Price incl. VAT
23
Plate
CM017408
$0,25 Unit Price incl. VAT
24
Self tapping screw 4,2x25*
014754
$2,95 Unit Price incl. VAT
25
Expansion plug
199190
$2,95 Unit Price incl. VAT
26
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
27
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
28
Self-tap screw
576189
$0,05 Unit Price incl. VAT
29
Left flap
577395
Not Available
29
Left flap
577395000C
$15,22 Unit Price incl. VAT
30
Self tapping screw M4,2x25
259372
$2,99 Unit Price incl. VAT
31
Right flap
577396000C
$15,22 Unit Price incl. VAT
32
Self tapping screw M4,2x25
259372
$2,99 Unit Price incl. VAT
33
Cover
620452
$5,38 Unit Price incl. VAT
34
Special screw
299972
$0,50 Unit Price incl. VAT
35
Self locking nut
577620
$0,08 Unit Price incl. VAT
37
Lock lever
577453
$5,38 Unit Price incl. VAT
38
paratia interna bauletto
623776
$8,91 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
