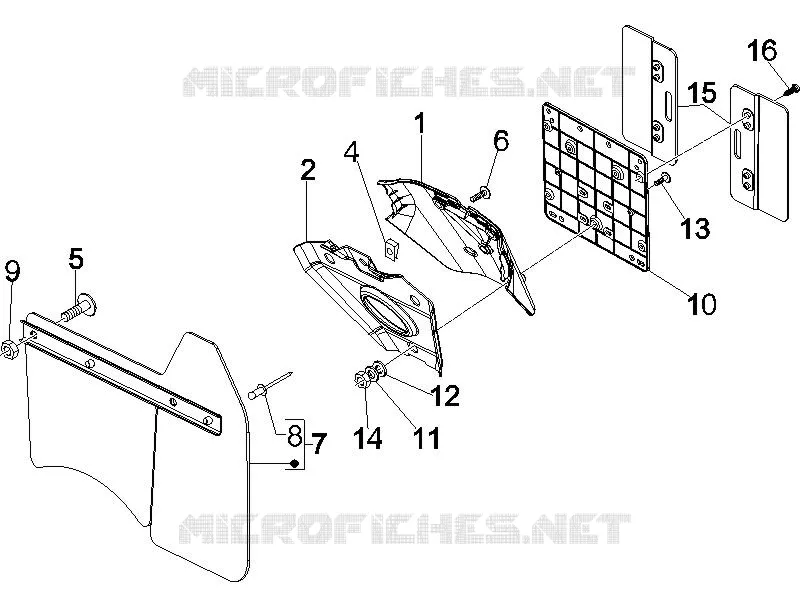

Rear cover - Splash guard
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Rear protection
62282400EP
$128,80 Unit Price incl. VAT
1
Rear protection
62282400F2
$128,80 Unit Price incl. VAT
1
Rear protection
62282400M5
$128,80 Unit Price incl. VAT
1
Rear protection
62282400EU
$128,80 Unit Price incl. VAT
1
Rear protection
62282400R7
$128,80 Unit Price incl. VAT
1
Rear protection
62282400GP
$128,80 Unit Price incl. VAT
1
Rear protection
6228240090
$128,80 Unit Price incl. VAT
1
Rear protection
62282400XN2
$128,80 Unit Price incl. VAT
1
Rear protection
62282400GV
$128,80 Unit Price incl. VAT
1
Rear protection
622824
$102,98 Unit Price incl. VAT
1
Rear protection
62282400DE
$128,80 Unit Price incl. VAT
2
Rear protection support
623563
Not Available
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Screw M6x16
272836
$3,70 Unit Price incl. VAT
6
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
7
Splash guard
620236
$17,07 Unit Price incl. VAT
8
Rivet
567642
$1,84 Unit Price incl. VAT
9
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
10
Number plate holder
584884
$2,30 Unit Price incl. VAT
11
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
12
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
13
screw M4x14
018591
Not Available
14
Nut M4
020104
$1,26 Unit Price incl. VAT
15
Number-plate extension
584877
$1,43 Unit Price incl. VAT
16
Plug screw
268596
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
