1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L
5
Parts Catalog

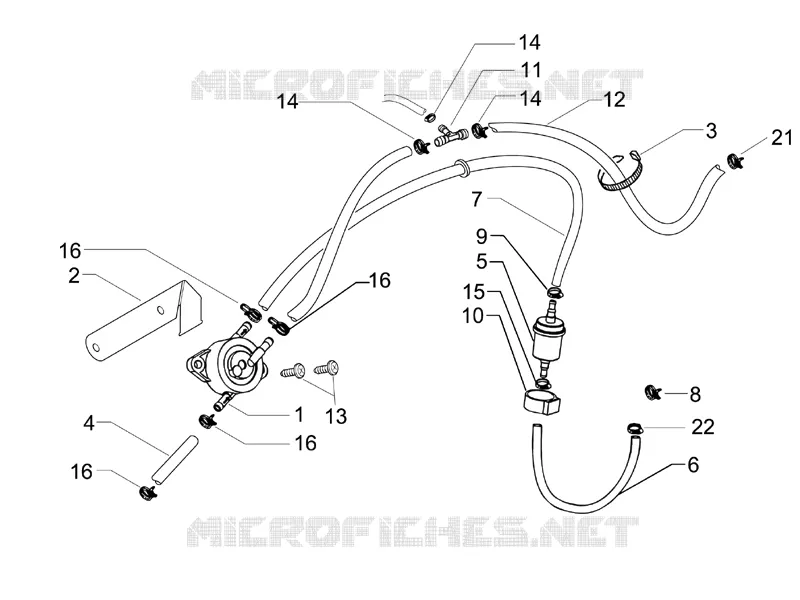

Supply system
6
Parts Diagram
Parts Catalog
Fuel tank
by
Cooling system
Supply system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
16
16
16
21
22
1
Fuel pump
CM120901
$85,05 Unit Price incl. VAT
2
Bracket
620050
$5,38 Unit Price incl. VAT
3
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
4
Fuel pipe
CM004126
Not Available
5
Fuel filter
270423
$10,67 Unit Price incl. VAT
6
Fuel tube
CM004103
Not Available
7
Fuel tube
CM006110
Not Available
8
Hose clamp
CM002905
$0,42 Unit Price incl. VAT
9
Hose clamp
CM002907
$0,42 Unit Price incl. VAT
10
Flexible support
272842
$5,38 Unit Price incl. VAT
11
Tee union
828325
$1,57 Unit Price incl. VAT
12
Tank pipe
CM001424
Not Available
13
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
14
Hose clamp
CM001901
$0,76 Unit Price incl. VAT
15
Hose clamp
CM002905
$0,42 Unit Price incl. VAT
16
Hose clamp
CM002905
$0,42 Unit Price incl. VAT
21
Spring
CM013201
$0,40 Unit Price incl. VAT
22
Non return spring
CM017803
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
