Parts Catalog
Fork/steering tube - Steering bearing unit
6

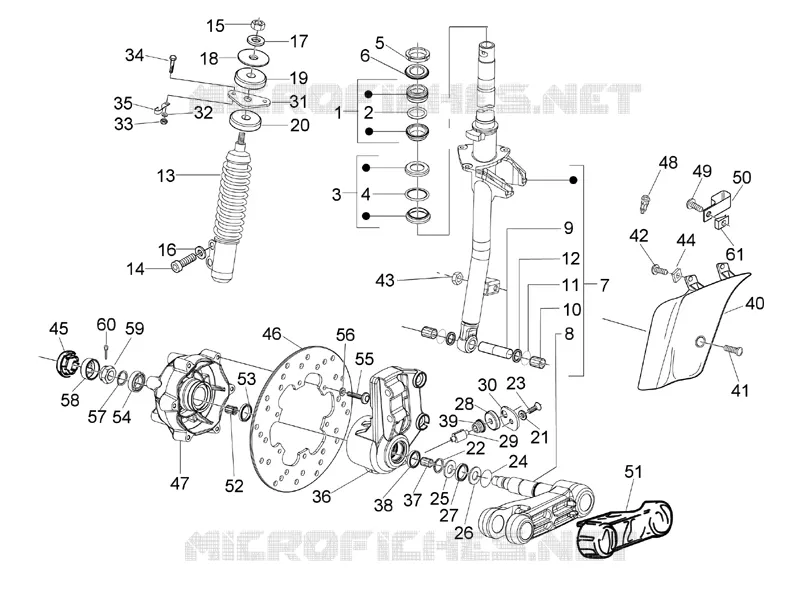

Parts Diagram
Parts Catalog
Swinging arm
by
Rear suspension - Shock absorber/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
1
Upper thrust ring
CM061303
$65,02 Unit Price incl. VAT
2
Missing description
000000
Not Available
3
Lower steering bearing
CM061304
Not Available
4
Missing description
000000
Not Available
5
Steering tube ring nut
011109
Not Available
6
Steering security plate
582787
$3,65 Unit Price incl. VAT
7
Steering column tube
6009605
Not Available
8
Suspension arm
56140R5
Not Available
9
Piston pin
177451
$3,03 Unit Price incl. VAT
10
Roller cage
198513
$5,97 Unit Price incl. VAT
11
Gasket
006731
$0,34 Unit Price incl. VAT
12
Gasket ring
119219
$0,67 Unit Price incl. VAT
13
Shock absorber
56192R
Not Available
13
SHOCK ABSORBER
56263R
Not Available
13
Complete front shock absorber
56286R
$85,05 Unit Price incl. VAT
14
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
15
Nut
021210
$0,16 Unit Price incl. VAT
16
Spring washer
709047
$0,08 Unit Price incl. VAT
17
Washer
012535
$0,08 Unit Price incl. VAT
18
Washer
174088
$0,84 Unit Price incl. VAT
19
Pad
174085
$1,18 Unit Price incl. VAT
20
Pad
174874
$2,36 Unit Price incl. VAT
21
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
22
Circlip
006422
$0,16 Unit Price incl. VAT
23
screw M5x16
031058
$2,95 Unit Price incl. VAT
24
O-ring
177408
$0,08 Unit Price incl. VAT
25
Washer
177414
$0,75 Unit Price incl. VAT
26
Washer
177445
$0,34 Unit Price incl. VAT
27
Ring
177521
$0,66 Unit Price incl. VAT
28
Pad
266841
$5,53 Unit Price incl. VAT
29
Pinion
267819
$7,69 Unit Price incl. VAT
30
Plate
269118
$4,82 Unit Price incl. VAT
31
Bracket
273693
$7,23 Unit Price incl. VAT
32
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
33
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
34
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
35
Hose clamp
598134
$3,65 Unit Price incl. VAT
36
Maintenance
597758
$59,64 Unit Price incl. VAT
37
Drawn cap
177436
$9,18 Unit Price incl. VAT
38
Ring
177494
$1,85 Unit Price incl. VAT
39
Maintenance
564053
Not Available
40
SUSPENSION COVER (FRONT)
59861500BM
$54,27 Unit Price incl. VAT
40
SUSPENSION COVER (FRONT)
5986150087
Not Available
40
Front suspension cover
59861500ND
Not Available
40
Front suspension cover
598615
Not Available
40
Front suspension cover
59861500DE
$54,27 Unit Price incl. VAT
40
Tyre
59861500D9
$54,27 Unit Price incl. VAT
40
Tyre
59861500VC
Not Available
40
Front suspension cover
59861500F2
$54,27 Unit Price incl. VAT
40
Front suspension arm cover
598615000C
Not Available
40
SUSPENSION COVER (FRONT)
59861500F3
$54,27 Unit Price incl. VAT
40
Tyre
59861500EB
$54,27 Unit Price incl. VAT
41
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
42
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
43
Nut
969224
$0,42 Unit Price incl. VAT
44
Spring plate
CM017410
$0,34 Unit Price incl. VAT
45
Cover
092517
Not Available
46
Brake disc
564573
Not Available
47
Hub
598654
$218,41 Unit Price incl. VAT
48
Elastic spring
231590
$0,25 Unit Price incl. VAT
49
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
50
Hose clamp
271477
$3,65 Unit Price incl. VAT
51
Front suspension arm cover
561433
Not Available
52
Roller cage
177442
$4,04 Unit Price incl. VAT
53
Gasket ring
177443
$1,77 Unit Price incl. VAT
54
Bearing
177610
$8,41 Unit Price incl. VAT
55
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
56
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
57
Snap ring
006635
$0,25 Unit Price incl. VAT
58
Cap
177609
$2,19 Unit Price incl. VAT
59
Nut
021114
$0,51 Unit Price incl. VAT
60
Split pin
012789
$0,16 Unit Price incl. VAT
61
Spring plate
CM017410
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
