1
Engine displacement
125
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L Potenziato
5
Parts Catalog

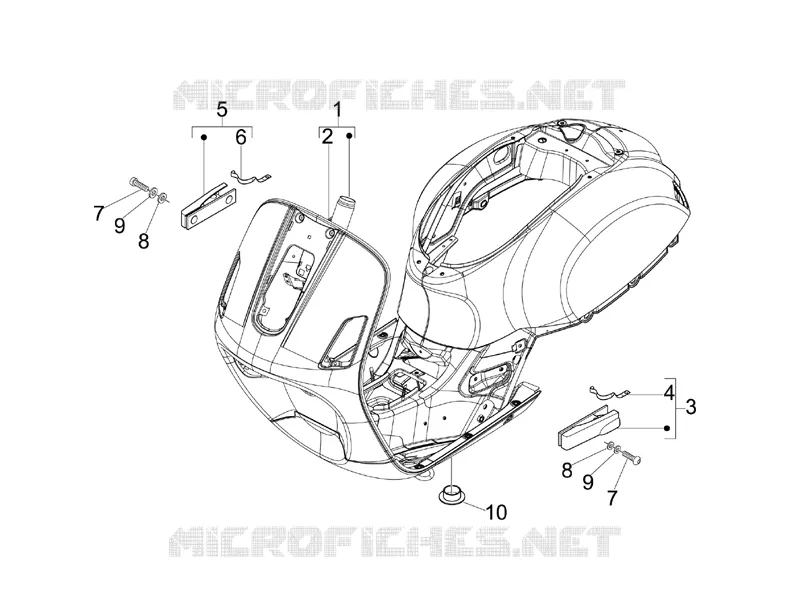

Frame/bodywork
6
Parts Diagram
Parts Catalog
Secondary air box
by
Stand/s
Frame/bodywork
1
2
3
4
5
6
7
7
8
8
9
9
10
1
Body with U.P.
62291450EB
Not Available
1
Frame with u.p.
62291450D9
Not Available
1
Body with U.P.
62291450BM
Not Available
1
Body with U.P.
62291450VC
Not Available
1
Body with U.P.
62291450F2
Not Available
1
Body with U.P.
62291450F3
Not Available
1
Body with U.P.
62291450ND
Not Available
1
Body with U.P.
62291450DE
Not Available
1
Body with U.P.
6229145087
Not Available
1
Cataphoresis body with U.P.
62291401
Not Available
2
Lock support
298604
$16,40 Unit Price incl. VAT
3
Complete left footrest
CM017201
Not Available
4
Spring
620395
$5,53 Unit Price incl. VAT
5
Complete right footrest
CM017202
Not Available
6
Spring
620395
$5,53 Unit Price incl. VAT
7
screw
975855
$3,65 Unit Price incl. VAT
8
Flat washer
483164
Not Available
9
Spring washer
709047
$0,08 Unit Price incl. VAT
10
Cover
299557
$0,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
