1
Engine displacement
125
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L Potenziato
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6

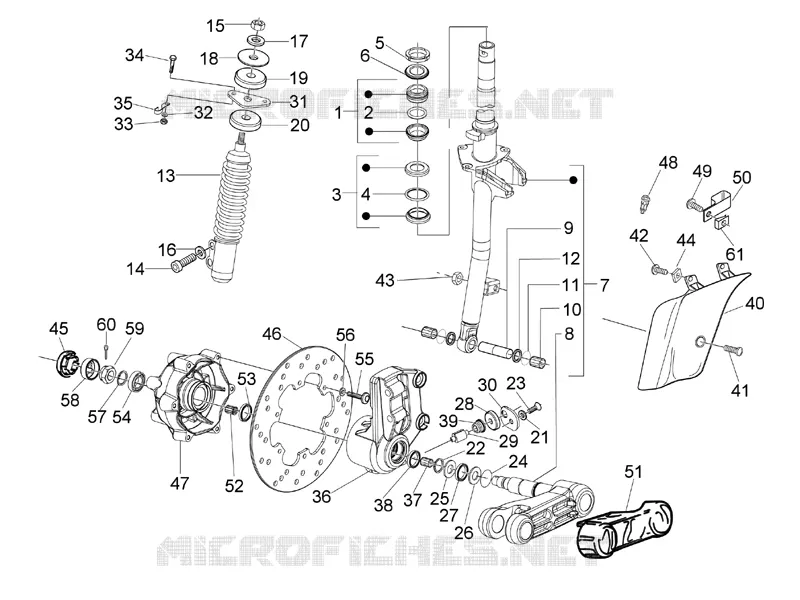

Parts Diagram
Parts Catalog
Swinging arm
by
Rear suspension - Shock absorber/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
1
Upper thrust ring
56297R
Not Available
2
Missing description
000000
Not Available
3
Lower steering bearing
56298R
Not Available
4
Missing description
000000
Not Available
5
Steering tube ring nut
011109
Not Available
6
Steering security plate
582787
$3,65 Unit Price incl. VAT
7
Steering column tube
6009605
Not Available
8
Suspension arm
56140R5
Not Available
9
Piston pin
177451
$3,03 Unit Price incl. VAT
10
Steering security plate
582787
$3,65 Unit Price incl. VAT
10
Roller cage
198513
$5,97 Unit Price incl. VAT
11
Gasket
006731
$0,34 Unit Price incl. VAT
11
Spring plate
CM017410
$0,34 Unit Price incl. VAT
12
Gasket ring
119219
$0,67 Unit Price incl. VAT
13
Complete front shock absorber
56286R
$85,05 Unit Price incl. VAT
14
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
15
Nut
021210
$0,16 Unit Price incl. VAT
16
Spring washer
709047
$0,08 Unit Price incl. VAT
17
Washer
012535
$0,08 Unit Price incl. VAT
18
Washer
174088
$0,84 Unit Price incl. VAT
19
Pad
174085
$1,18 Unit Price incl. VAT
20
Pad
174874
$2,36 Unit Price incl. VAT
21
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
22
Circlip
006422
$0,16 Unit Price incl. VAT
23
screw M5x16
031058
$2,95 Unit Price incl. VAT
24
O-ring
177408
$0,08 Unit Price incl. VAT
25
Washer
177414
$0,75 Unit Price incl. VAT
26
Circlip
006422
$0,16 Unit Price incl. VAT
26
Washer
177445
$0,34 Unit Price incl. VAT
27
Ring
177521
$0,66 Unit Price incl. VAT
27
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
28
screw M5x16
031058
$2,95 Unit Price incl. VAT
28
Pad
266841
$5,53 Unit Price incl. VAT
29
O-ring
177408
$0,08 Unit Price incl. VAT
29
Pinion
267819
$7,69 Unit Price incl. VAT
30
Plate
269118
$4,82 Unit Price incl. VAT
30
Washer
177414
$0,75 Unit Price incl. VAT
31
Bracket
273693
$7,23 Unit Price incl. VAT
31
Washer
177445
$0,34 Unit Price incl. VAT
32
Ring
177521
$0,66 Unit Price incl. VAT
32
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
33
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
33
Pad
266841
$5,53 Unit Price incl. VAT
34
Pinion
267819
$7,69 Unit Price incl. VAT
34
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
35
Hose clamp
598134
$3,65 Unit Price incl. VAT
35
Plate
269118
$4,82 Unit Price incl. VAT
36
Maintenance
597758
$59,64 Unit Price incl. VAT
36
Bracket
273693
$7,23 Unit Price incl. VAT
37
Maintenance
564053
Not Available
37
Drawn cap
177436
$9,18 Unit Price incl. VAT
38
Maintenance
597758
$59,64 Unit Price incl. VAT
38
Ring
177494
$1,85 Unit Price incl. VAT
39
Maintenance
564053
Not Available
40
SUSPENSION COVER (FRONT)
59861500BM
$54,27 Unit Price incl. VAT
40
SUSPENSION COVER (FRONT)
5986150087
Not Available
40
Front suspension cover
59861500ND
Not Available
40
Front suspension cover
598615
Not Available
40
Front suspension cover
59861500DE
$54,27 Unit Price incl. VAT
40
Tyre
59861500D9
$54,27 Unit Price incl. VAT
40
Tyre
59861500VC
Not Available
40
Front suspension cover
59861500F2
$54,27 Unit Price incl. VAT
40
Front suspension arm cover
598615000C
Not Available
40
SUSPENSION COVER (FRONT)
59861500F3
$54,27 Unit Price incl. VAT
40
Tyre
59861500EB
$54,27 Unit Price incl. VAT
41
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
42
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
43
Nut
969224
$0,42 Unit Price incl. VAT
44
Spring plate
CM017410
$0,34 Unit Price incl. VAT
45
Cover
092517
Not Available
46
Brake disc
564573
Not Available
47
Hub
598654
$218,41 Unit Price incl. VAT
48
Elastic spring
231590
$0,25 Unit Price incl. VAT
49
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
50
Hose clamp
271477
$3,65 Unit Price incl. VAT
51
Steering column tube
6009605
Not Available
51
Front suspension arm cover
561433
Not Available
52
Roller cage
177442
$4,04 Unit Price incl. VAT
53
Gasket ring
177443
$1,77 Unit Price incl. VAT
54
Bearing
177610
$8,41 Unit Price incl. VAT
55
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
56
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
57
Snap ring
006635
$0,25 Unit Price incl. VAT
57
Complete front shock absorber
56286R
$85,05 Unit Price incl. VAT
58
Cap
177609
$2,19 Unit Price incl. VAT
58
Cover
092517
Not Available
59
Hose clamp
271477
$3,65 Unit Price incl. VAT
59
Nut
021114
$0,51 Unit Price incl. VAT
60
Elastic spring
231590
$0,25 Unit Price incl. VAT
60
Split pin
012789
$0,16 Unit Price incl. VAT
61
Spring plate
CM017410
$0,34 Unit Price incl. VAT
61
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
62
Front suspension arm cover
561433
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
