1
Engine displacement
125
2
Model
GRANTURISMO
3
Year
2006
4
Trim
Granturismo L E3
5
Parts Catalog

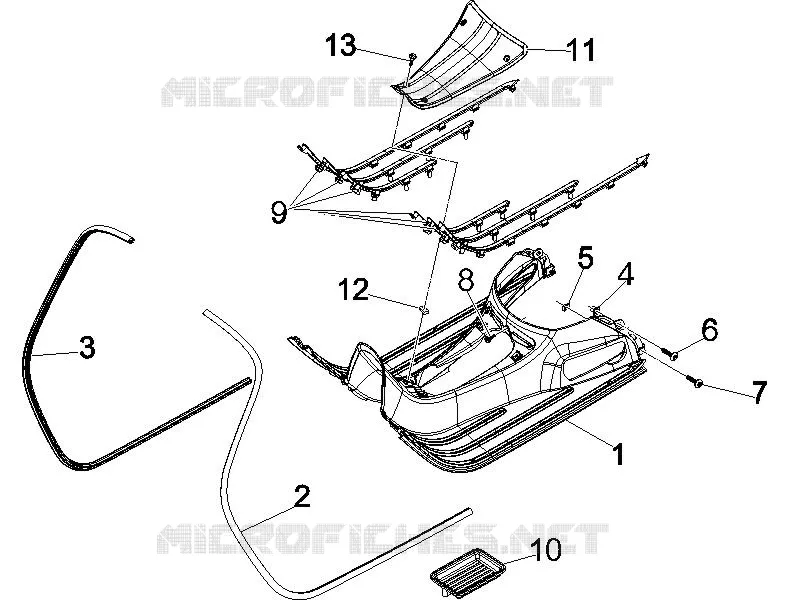

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Front shield
by
Side cover - Spoiler
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Footrest
62392800F2
Not Available
1
Footrest
623928
Not Available
1
Footrest
62392800ND
Not Available
1
FLOORBOARD
62392800F3
Not Available
1
Footrest
62392800DE
Not Available
2
Left-hand shield edge
577180
$56,70 Unit Price incl. VAT
3
Right-hand shield edge
577181
$56,70 Unit Price incl. VAT
4
Expansion plug
199190
$2,95 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
7
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
8
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
9
Kit strips, footboard
577437
Not Available
10
Float chamber
584934
Not Available
11
Battery cover
577182
$45,50 Unit Price incl. VAT
12
Spring plate
CM017410
$0,34 Unit Price incl. VAT
13
Self-tap screw
576189
$0,05 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
