1
Engine displacement
125
2
Model
GRANTURISMO
3
Year
2006
4
Trim
Granturismo L E3
5
Parts Catalog

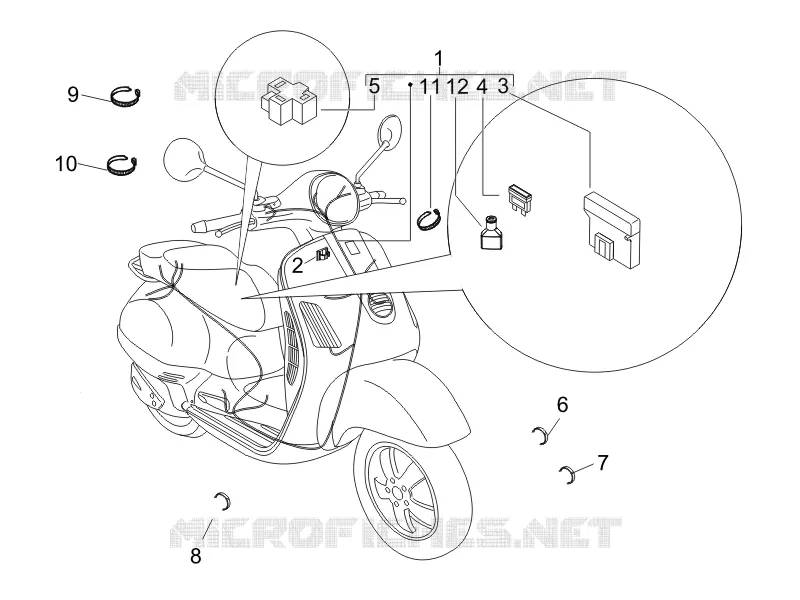

Main cable harness
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
Main cable harness
1
2
3
4
5
6
7
8
9
10
11
12
1
WIRING HARNESS
639908
Not Available
2
Spring clamp
577594
$0,42 Unit Price incl. VAT
3
Fuse holder
580653
$35,69 Unit Price incl. VAT
4
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
4
Reed fuse 5a
293256
$0,42 Unit Price incl. VAT
4
Reed fuse 3a
582930
$4,38 Unit Price incl. VAT
4
Reed fuse 10A
292507
$0,42 Unit Price incl. VAT
5
PTF block
156205
Not Available
6
Non return spring
CM006902
$0,92 Unit Price incl. VAT
7
Non return spring L=12
CM006905
$1,35 Unit Price incl. VAT
8
Pipes/cables retainer spring L=16
CM006907
$1,51 Unit Price incl. VAT
9
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
10
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
11
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
12
Cap
255256
$3,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
