by

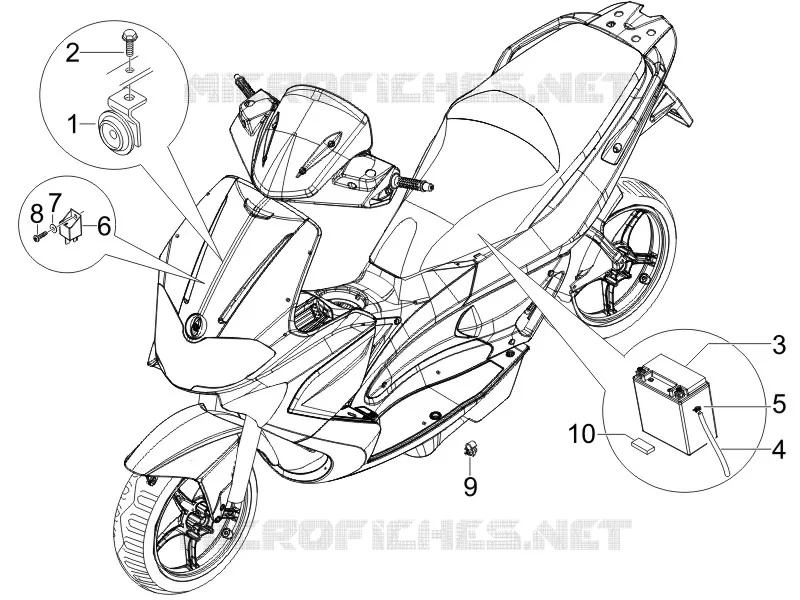

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
1
Horn
1D000636
$35,10 Unit Price incl. VAT
2
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
3
Battery 12V-9Ah
584810
$180,83 Unit Price incl. VAT
4
Breather pipe
294485
$5,38 Unit Price incl. VAT
5
Hose clamp
639082
$3,65 Unit Price incl. VAT
6
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
7
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
8
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
9
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
10
Pad
583310
$1,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
