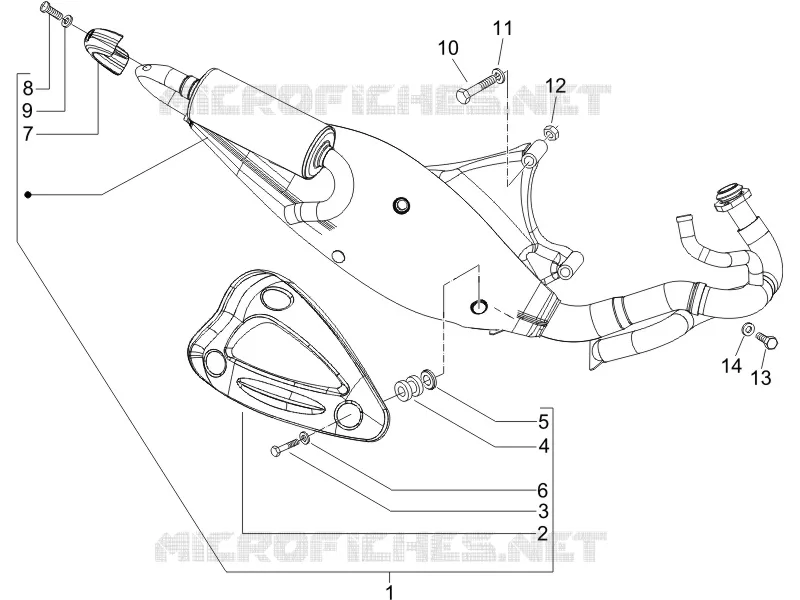

Silencer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Catalytic converter complete with protection
8724075
Not Available
1
Silencer complete with protection
880791
Not Available
1
Silencer complete with protection
8739675
Not Available
2
Exhaust pipe protection
827845
Not Available
3
screw
848766
Not Available
4
Fairlead
487665
$0,84 Unit Price incl. VAT
5
Spacer
826117
$0,29 Unit Price incl. VAT
6
Spacer
826118
$0,53 Unit Price incl. VAT
7
Guard
827776
$16,77 Unit Price incl. VAT
8
screw M5x10
433800
$0,19 Unit Price incl. VAT
9
Washer
827193
Not Available
10
Hex socket screw M8x75
845591
$2,95 Unit Price incl. VAT
11
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
12
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
13
Screw w/ flange M10
433122
$3,65 Unit Price incl. VAT
14
Washer ø10.2xø15x2
016195
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
