1
Engine displacement
200
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VXR 4T E3
5
Parts Catalog
Air filter
6

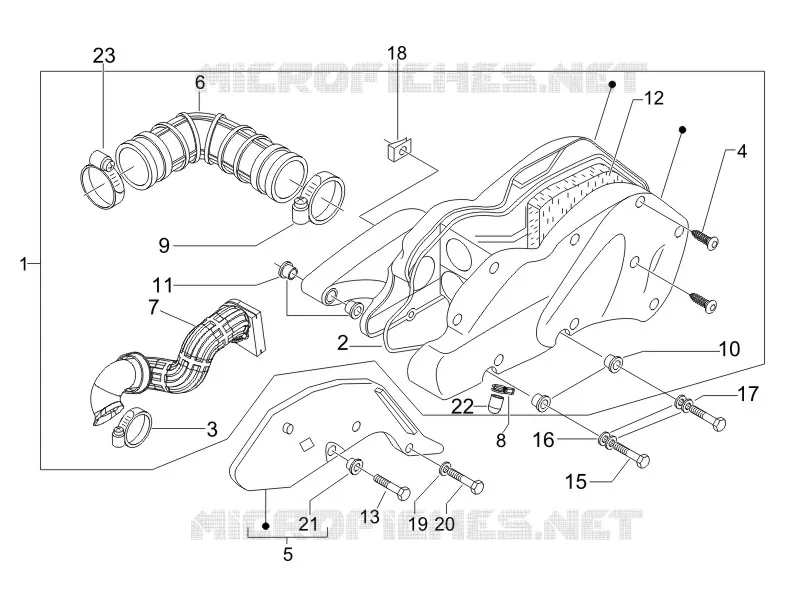

Parts Diagram
Parts Catalog
Silencer
by
Secondary air box
Air filter
19
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
23
22
21
20
1
AIR CLEANER ASSY
849659
Not Available
2
Filter cover gasket
829259
$14,30 Unit Price incl. VAT
3
Hose clip 35-33
830015
Not Available
4
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
5
Protection
848036
Not Available
6
Carburettor flange
849658
Not Available
7
Air cleaner/vehicle sleeve
845996
$42,72 Unit Price incl. VAT
8
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
9
Hose clamp
260918
$1,68 Unit Price incl. VAT
10
Knurled bushing
830056
$0,34 Unit Price incl. VAT
11
Bushing
830057
$1,01 Unit Price incl. VAT
12
Air filter
829258
Not Available
13
screw M6x35
414838
$0,67 Unit Price incl. VAT
14
Hose clamp
260918
$1,68 Unit Price incl. VAT
15
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
16
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
17
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
19
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
20
screw
259166
Not Available
21
Knurled bushing
830056
$0,34 Unit Price incl. VAT
22
Cap
827831
$2,60 Unit Price incl. VAT
23
Hose clamp
CM001904
$0,75 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
