1
Engine displacement
200
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VXR 4T E3
5
Parts Catalog

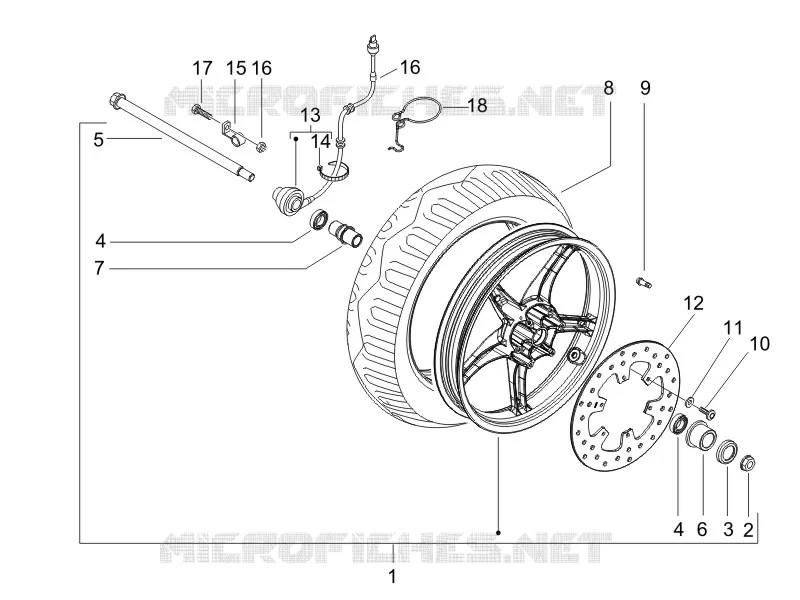

Front wheel
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Rear wheel
Front wheel
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
1
CPL.FRONT WHEEL WITH BEAR
94932600B1
Not Available
2
Nut M12
271740
$0,67 Unit Price incl. VAT
3
Guard ring
271744
Not Available
4
Bearing
271745
Not Available
5
Wheel pin
959376
$17,41 Unit Price incl. VAT
6
spacer
959377
Not Available
7
spacer
959378
$6,00 Unit Price incl. VAT
8
Front tyre 120/70 R14 55P Pirelli
949601
Not Available
8
Tyre (Sava) 120/70-14"
949602
Not Available
9
Tubeless tyre valve
270991
$1,85 Unit Price incl. VAT
10
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
11
Washer 6,4x10x0,7
274706
$0,24 Unit Price incl. VAT
12
Front brake disk
56394R
$101,25 Unit Price incl. VAT
12
Front brake disk
601749
Not Available
13
Phonic wheel
58123R
Not Available
14
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
15
Spring
179013
$0,42 Unit Price incl. VAT
16
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
17
Screw w/ flange M6x25
414837
Not Available
18
Hose clamp
639426
$0,17 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
