1
Engine displacement
200
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VXR 4T Race E3
5
Parts Catalog

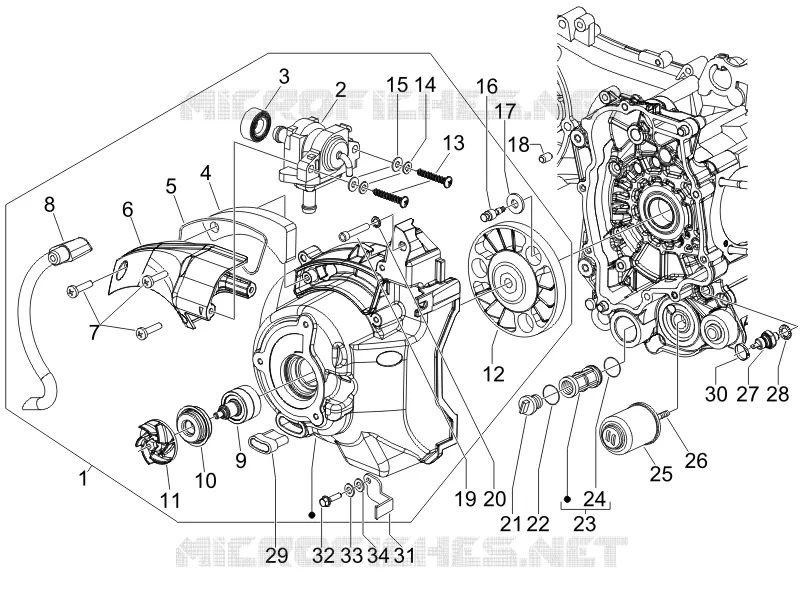

Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Reduction unit
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
Flywheel cover cpl.
8482595
Not Available
1
Flywheel cover cpl.
8482585
$183,00 Unit Price incl. VAT
2
SAS valve
82731R
$89,76 Unit Price incl. VAT
3
Gasket
831256
$4,82 Unit Price incl. VAT
4
Filter
831257
$3,78 Unit Price incl. VAT
5
Gasket
831258
$4,82 Unit Price incl. VAT
6
Cover
831255
$7,69 Unit Price incl. VAT
7
Screw M5x22
828662
$0,25 Unit Price incl. VAT
8
pipe
848080
$43,65 Unit Price incl. VAT
9
Water pump rod with U.P.
845633
Not Available
10
Gasket ring
842595
Not Available
11
Water pump impeller cpl.
844730
$3,01 Unit Price incl. VAT
12
Pump impeller drive key
872908
$7,70 Unit Price incl. VAT
12
Drive coupling
487459
$7,23 Unit Price incl. VAT
13
Self tapping screw L=35 mm
296458
$2,25 Unit Price incl. VAT
14
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
15
Plain washer 12x5.2x1
006078
$0,08 Unit Price incl. VAT
16
screw
828569
Not Available
16
Special screw
82869R
$12,36 Unit Price incl. VAT
17
Washer
828535
$2,99 Unit Price incl. VAT
18
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
19
screw
828493
$2,95 Unit Price incl. VAT
20
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
21
Oil filter plug
82823R
Not Available
21
Oil filter plug
826165
$5,88 Unit Price incl. VAT
22
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
23
Intake oil filter
483841
$3,55 Unit Price incl. VAT
24
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
25
Oil filter
82635R
$12,36 Unit Price incl. VAT
26
Special screw
483776
$1,49 Unit Price incl. VAT
27
Oil pressure sensor
82580R
$16,59 Unit Price incl. VAT
28
Washer 10.5X16X2.5
486075
$1,58 Unit Price incl. VAT
29
Cover
825529
$5,38 Unit Price incl. VAT
30
Hose clamp
825481
$3,38 Unit Price incl. VAT
31
Cable support bracket
639531
$1,43 Unit Price incl. VAT
32
Screw M5x10
018575
$2,95 Unit Price incl. VAT
33
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
34
Washer
828535
$2,99 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
