1
Engine displacement
200
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VXR 4T Race E3
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Engine, assembly

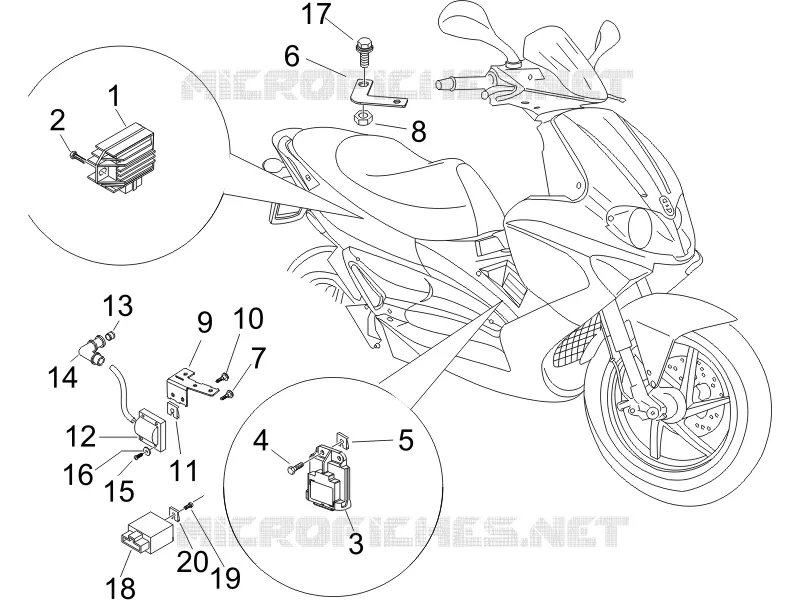

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
1
Voltage regulator
58090R
Not Available
2
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
Electronic ignition device with immobilizer (EFI TECHNOLOGY)
639794
Not Available
3
CDI Ignition BOX
58127R
Not Available
4
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Cable harness support bracket
639419
$0,65 Unit Price incl. VAT
7
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
8
Self locking nut M5
241937
Not Available
9
Control unit support bracket
949384
$1,70 Unit Price incl. VAT
10
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT
13
Spark plug prot.collar
828210
Not Available
14
Screened cap
293845
$6,14 Unit Price incl. VAT
15
screw M5x21
015856
$0,16 Unit Price incl. VAT
16
Washer
012528
$0,34 Unit Price incl. VAT
17
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
18
Electric pump control device
640333
$31,05 Unit Price incl. VAT
19
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
19
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
20
Spring plate M6
254485
$0,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
