Saddle/seats for Fly 4T 3V ie from 2015

Saddle/seats

1

Saddle assembly

67453200C1

$258,70 Unit Price incl. VAT

2

Bracket

296743

$5,73 Unit Price incl. VAT

3

Pad

577492

$4,21 Unit Price incl. VAT

4

Hose clamp

298729

$0,34 Unit Price incl. VAT

5

Lock body

673816

$5,38 Unit Price incl. VAT

6

Pin

672633

$3,65 Unit Price incl. VAT

7

Cam

673817

$8,65 Unit Price incl. VAT

8

Spring

672628

$3,65 Unit Price incl. VAT

9

Complete tightening cover

673818

$7,69 Unit Price incl. VAT

10

Saddle lock

673820

$18,75 Unit Price incl. VAT

11

Stop buffer

296456

$2,77 Unit Price incl. VAT

12

Self-tap screw

CM178604

$0,08 Unit Price incl. VAT

13

Ring

005965

$2,95 Unit Price incl. VAT

14

Screw w/ flange

436788

Not Available

15

Spring plate M6

254485

$0,34 Unit Price incl. VAT

16

Rear luggage rack

6745290095

$197,20 Unit Price incl. VAT

17

Hex socket screw

975840

$3,65 Unit Price incl. VAT

18

Screw metrica

CM179303

$0,34 Unit Price incl. VAT

19

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

20

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

21

Notched washer 6,6x11x0

012533

$0,67 Unit Price incl. VAT

22

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

23

Spring plate M6

254485

$0,34 Unit Price incl. VAT

24

Tool roll

781235

Not Available

25

Rear carrie cover

674530000C

$7,69 Unit Price incl. VAT

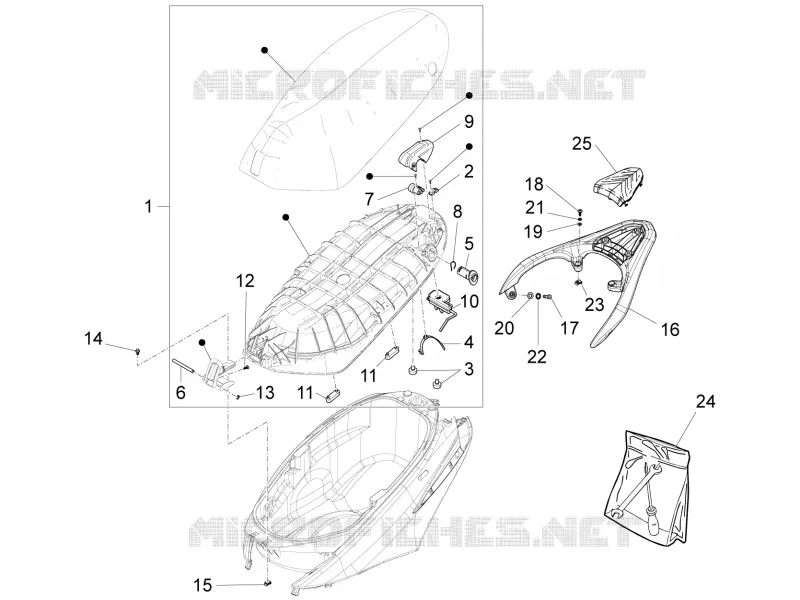

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
